Huanyu Cable manufactures medium voltage XLPE power cables from 3.6/6 kV up to 26/35 kV for substations, industrial facilities, utility distribution and infrastructure projects. Copper and aluminium conductor, unarmoured, STA and SWA constructions are reviewed against IEC 60502-2, applicable GB/T requirements or the confirmed project specification.

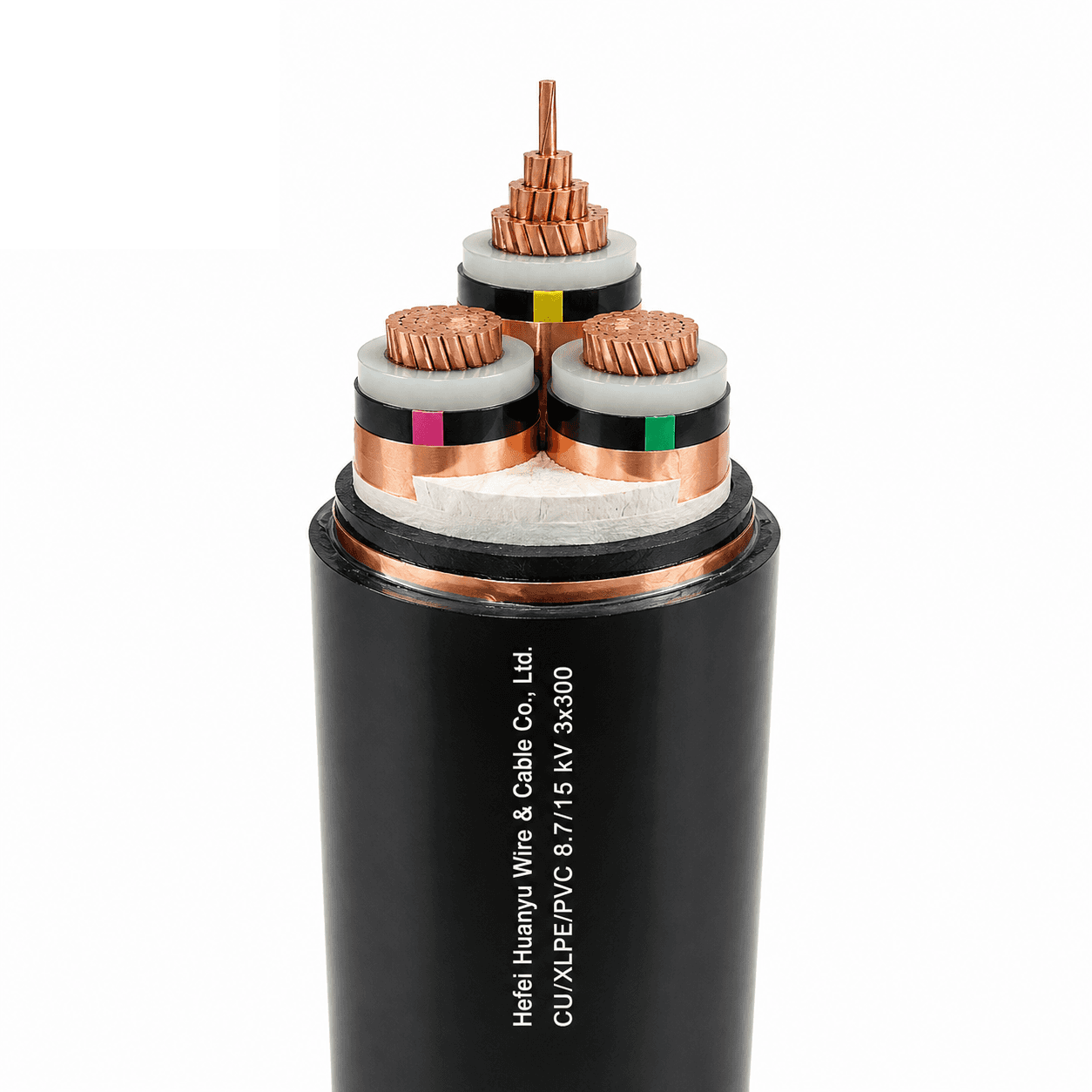

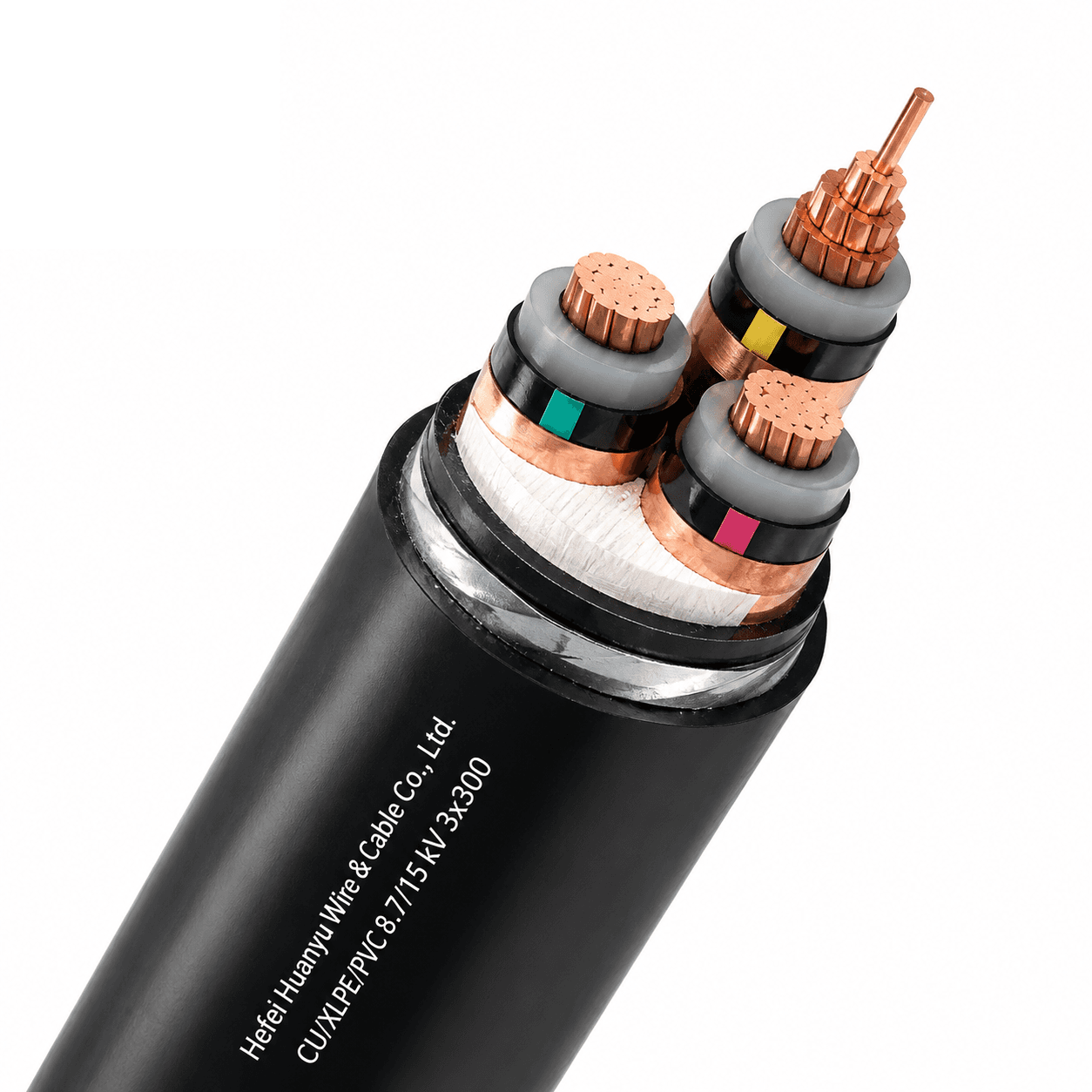

Representative medium voltage cable image for structure and specification review. Final construction is confirmed against the project specification before quotation.
Huanyu Cable supplies medium voltage XLPE power cables for distribution networks, substations, industrial plants, renewable energy grid-connection projects and large facilities. Cable construction is reviewed according to the confirmed voltage class, route conditions, conductor material, screen design, armour requirement and documentation scope.
Typical Chinese model references for MV cable construction families include YJV, YJY, YJV22, YJV23, YJV32 and YJV33. Steel tape armour and steel wire armour are selected by installation conditions, while conductor, sheath and final project designation are confirmed project by project.

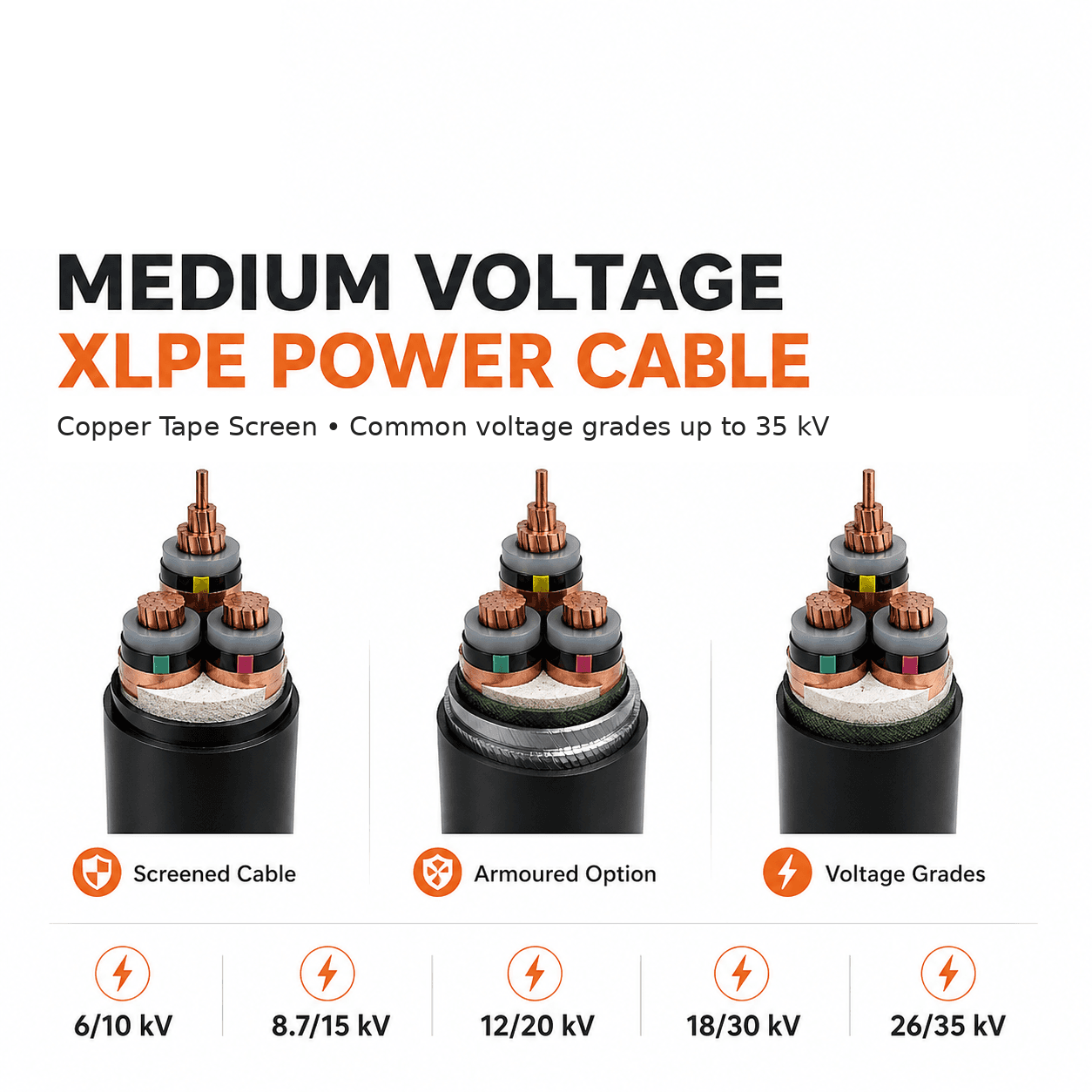

Representative constructions are listed for initial selection. Final cable type, voltage class and testing scope are confirmed during specification review.
XLPE insulated, PVC or PE sheathed medium voltage power cable for protected fixed installations where additional mechanical protection is not required.

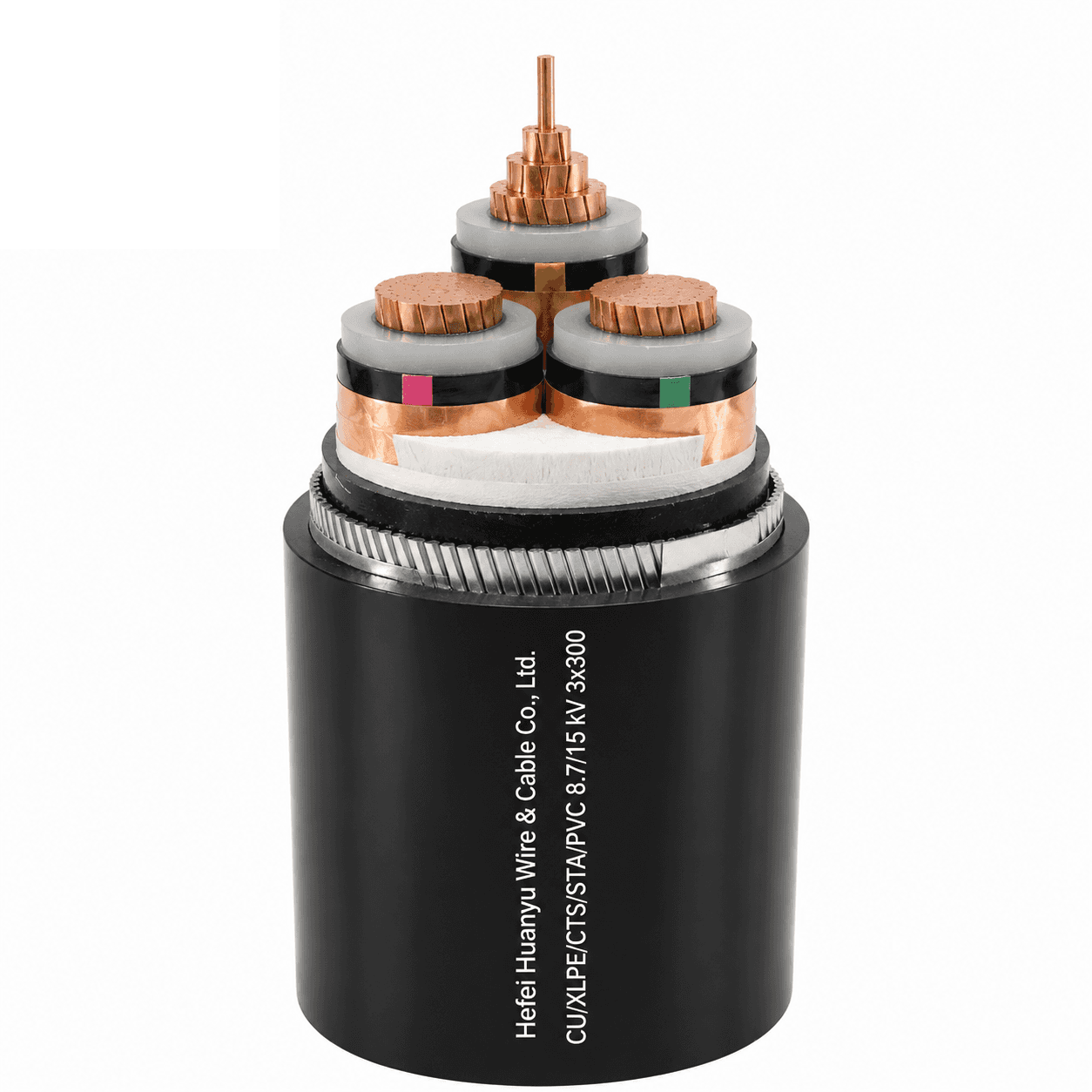

Steel tape armoured medium voltage power cable for applicable multicore constructions requiring radial mechanical protection, with PVC or PE sheath options.
Steel wire armoured medium voltage power cable for applicable multicore constructions requiring higher mechanical or tensile protection, subject to route and circuit design.
Conductor material, screen design, sheath material, flame-retardant or LSZH requirements can be reviewed against confirmed specifications.

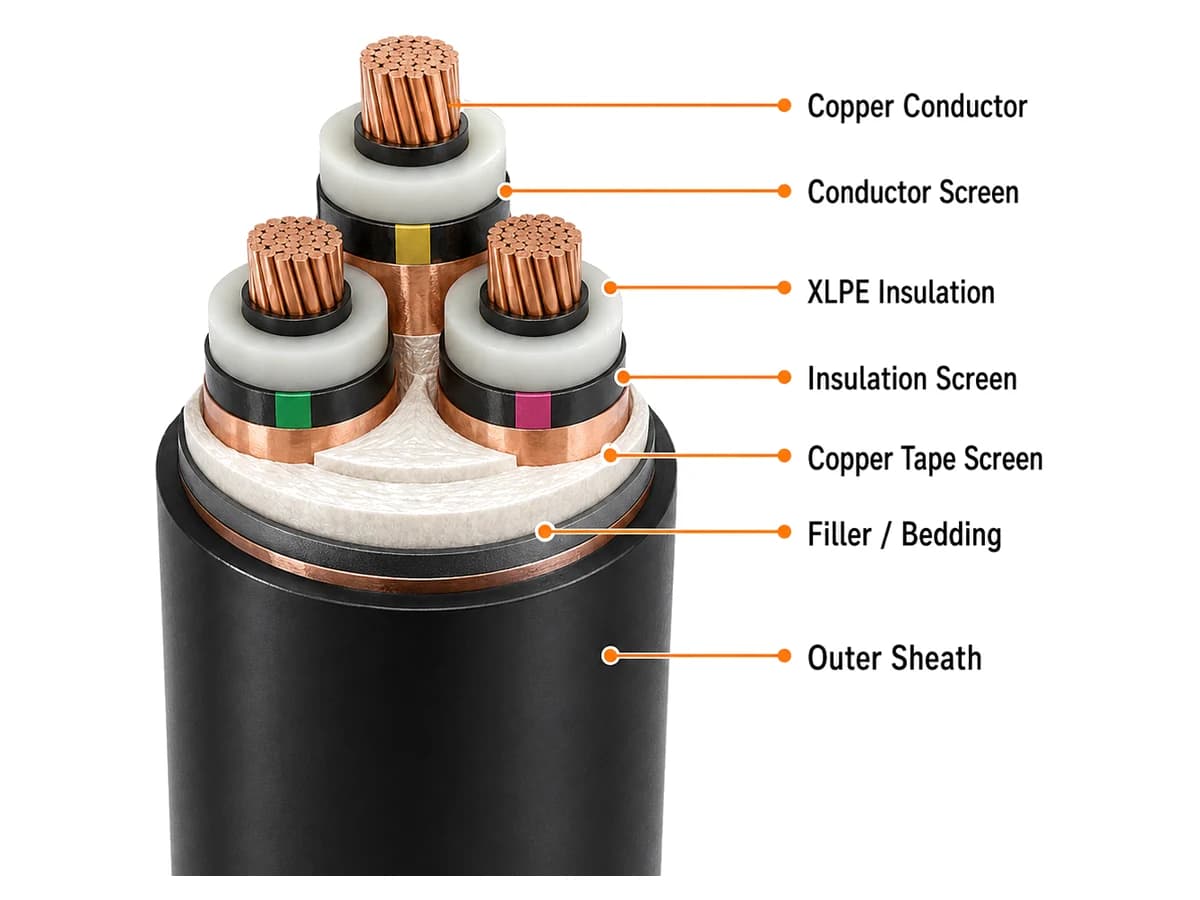

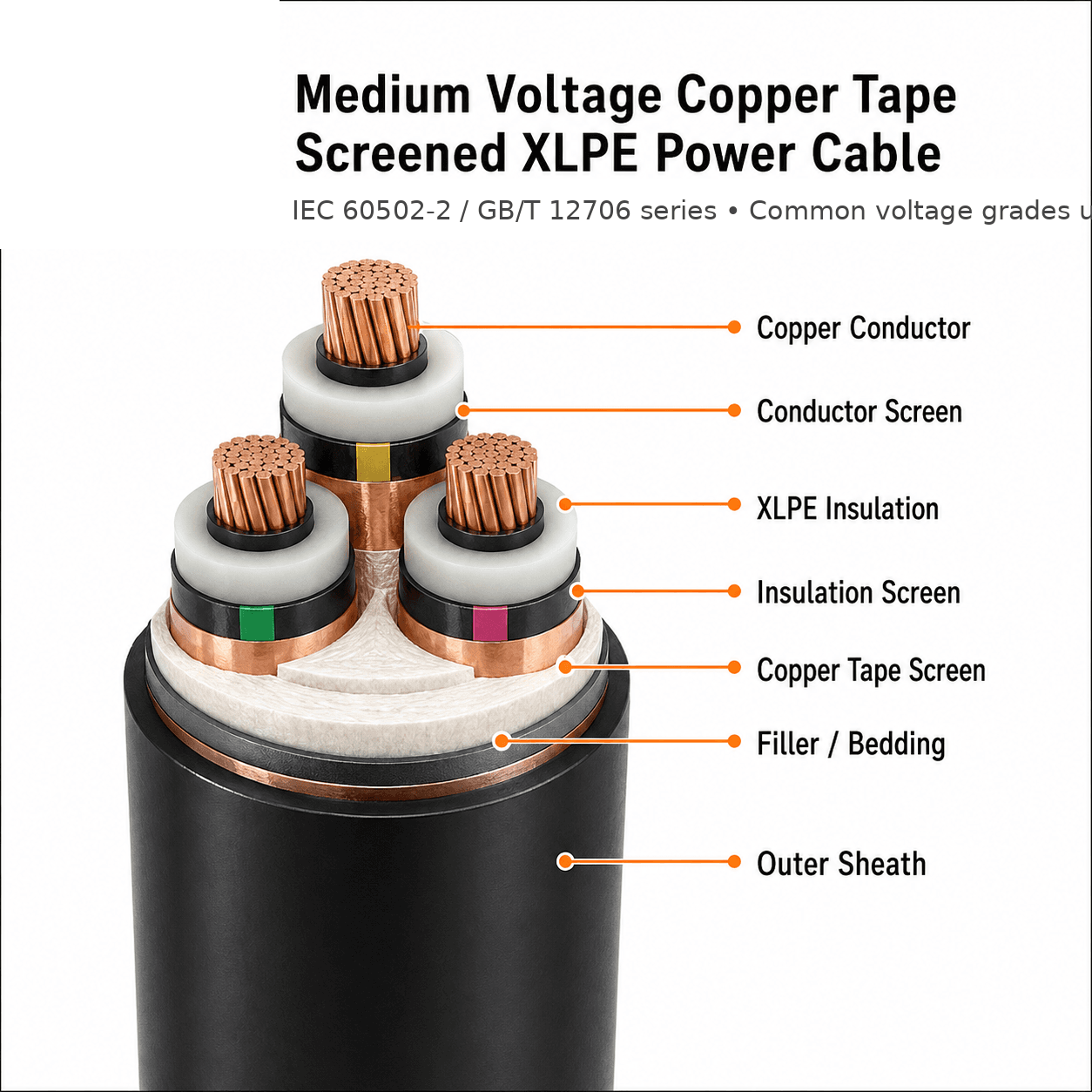

| Layer | Description |
|---|---|
| Conductor | Compacted copper or aluminum conductor, subject to project requirements. |
| Conductor screen | Extruded semi-conductive layer. |
| Insulation | XLPE insulation for medium voltage power distribution. |
| Insulation screen | Extruded semi-conductive layer. |
| Metallic screen | Copper tape screen or other confirmed metallic screen design. |
| Filling / bedding | Fillers, wrapping and bedding applied for multi-core or armoured construction where required. |
| Armour | Unarmoured, steel tape armoured or steel wire armoured construction according to installation conditions. |
| Outer sheath | PVC or PE outer sheath, with flame-retardant or LSZH options reviewed per project. |
These parameters are for specification review and should be confirmed with the required cable design, installation environment and documentation requirements.
| Item | Typical project review scope |
|---|---|
| Rated voltage | Typical classes include 3.6/6 kV, 6/10 kV, 8.7/15 kV, 12/20 kV, 18/30 kV, 21/35 kV and 26/35 kV, subject to confirmed project specifications. |
| Typical cable types | YJV, YJY, YJV22, YJV23, YJV32 and YJV33 medium voltage cable designs. |
| Conductor material | Copper or aluminum conductor options reviewed according to project requirements. |
| Number of cores | Single-core or three-core designs, subject to voltage class, route design and confirmed specification. |
| Insulation and screens | XLPE insulation with conductor screen, insulation screen and metallic screen according to confirmed design. |
| Armour option | Unarmoured, steel tape armour or steel wire armour selected according to installation conditions. |
| Outer sheath | PVC or PE sheath, with project-specific flame-retardant or LSZH options available for review. |
| Typical installation | Underground duct, cable trench, cable tray, substation connection or direct-burial route where the cable design is properly selected. |
| Specification review | Relevant GB/T and IEC-based requirements can be reviewed against the confirmed cable design, voltage class, structure and testing scope. |
Need help confirming a project voltage designation, armour or test-document requirement?
View MV XLPE Cable Selection Guide
For a project file or BOQ, Email BOQ / Specs ->
For protected routes such as ducts, trays or controlled installation environments.
For projects requiring steel tape armour and radial mechanical protection.
For projects requiring steel wire armour or higher mechanical and tensile protection, subject to route design.
Medium voltage cable supply for project-based utility distribution routes.
Power cable connections for transformers, switchgear and substation equipment.
Fixed MV power distribution for factories, plants and industrial parks.
Medium voltage cable for large buildings, campuses and public infrastructure.
Grid-connection cable requirements reviewed according to project specifications.
Power distribution for data centers, large facilities and critical infrastructure projects.
Routine electrical tests, dimensional checks and documentation support can be provided according to confirmed project requirements and agreed testing scope.
Huanyu Cable reviews MV cable requirements from 3.6/6 kV up to 35 kV classes, including common 6/10 kV, 8.7/15 kV, 12/20 kV, 18/30 kV, 21/35 kV and 26/35 kV projects.
YJV or YJY are unarmoured XLPE insulated MV cables. YJV22 and YJV23 use steel tape armour. YJV32 and YJV33 use steel wire armour.
Copper and aluminum conductor options can be reviewed per project, based on voltage class, conductor size, route design and confirmed specifications.
IEC-based medium voltage cable requirements can be reviewed project by project against the confirmed cable design, testing scope and documentation requirements.
The selection depends on installation route, mechanical protection, pulling conditions and project specification. Unarmoured, STA and SWA designs should be confirmed before quotation.
Flame-retardant or LSZH sheath requirements can be reviewed where the project specifies fire-safety or smoke-performance requirements for the MV cable route.
Please send voltage class, cable type, conductor material, cores, cross-section, armour, sheath, standard, quantity and installation environment.
Please include voltage class, cable type, conductor material, core number, cross-section, armour type, sheath material, standard, quantity and installation environment.
