YJV
XLPE insulated PVC sheathed power cable with copper conductor for fixed installation in buildings, industrial plants and power distribution systems.
Back to all productsLow Voltage XLPE Power Cables
Low Voltage XLPE Power Cables – 0.6/1 kV
Huanyu Cable manufactures 0.6/1 kV low voltage XLPE power cables in China, with copper or aluminium conductors and PVC or PE sheath options for distributors, EPC contractors and project buyers. Construction, testing and documentation are reviewed against IEC 60502-1, applicable GB/T requirements or the confirmed project specification before quotation.
Copper / AluminiumPVC / PE SheathIEC 60502-1
Representative product image for structure and quotation discussion. Final construction is confirmed against the applicable specification before quotation.
Product Scope
General Low-Voltage XLPE Cable Families
Low-voltage XLPE insulated power cables for fixed distribution systems, including copper or aluminium conductor options and PVC or PE sheath constructions. Armoured variants are reviewed according to installation conditions and project specifications. For dedicated steel tape or steel wire armoured constructions, view Armoured LV Power Cables.
For quotation, please confirm the voltage rating (0.6/1 kV or 1.8/3 kV), conductor material, core arrangement, cross-section, sheath, armour requirement and installation route. Applicable IEC 60502-1, GB/T or project-specific requirements, together with required tests and delivery documents, are reviewed before the final cable construction is confirmed. Email BOQ / Specs ->
For a practical armour comparison, read the STA vs SWA armoured cable selection guide.
Preparing a 0.6/1 kV enquiry? Review the Low Voltage XLPE Cable RFQ Checklist.
Model Family / Common Chinese Model References

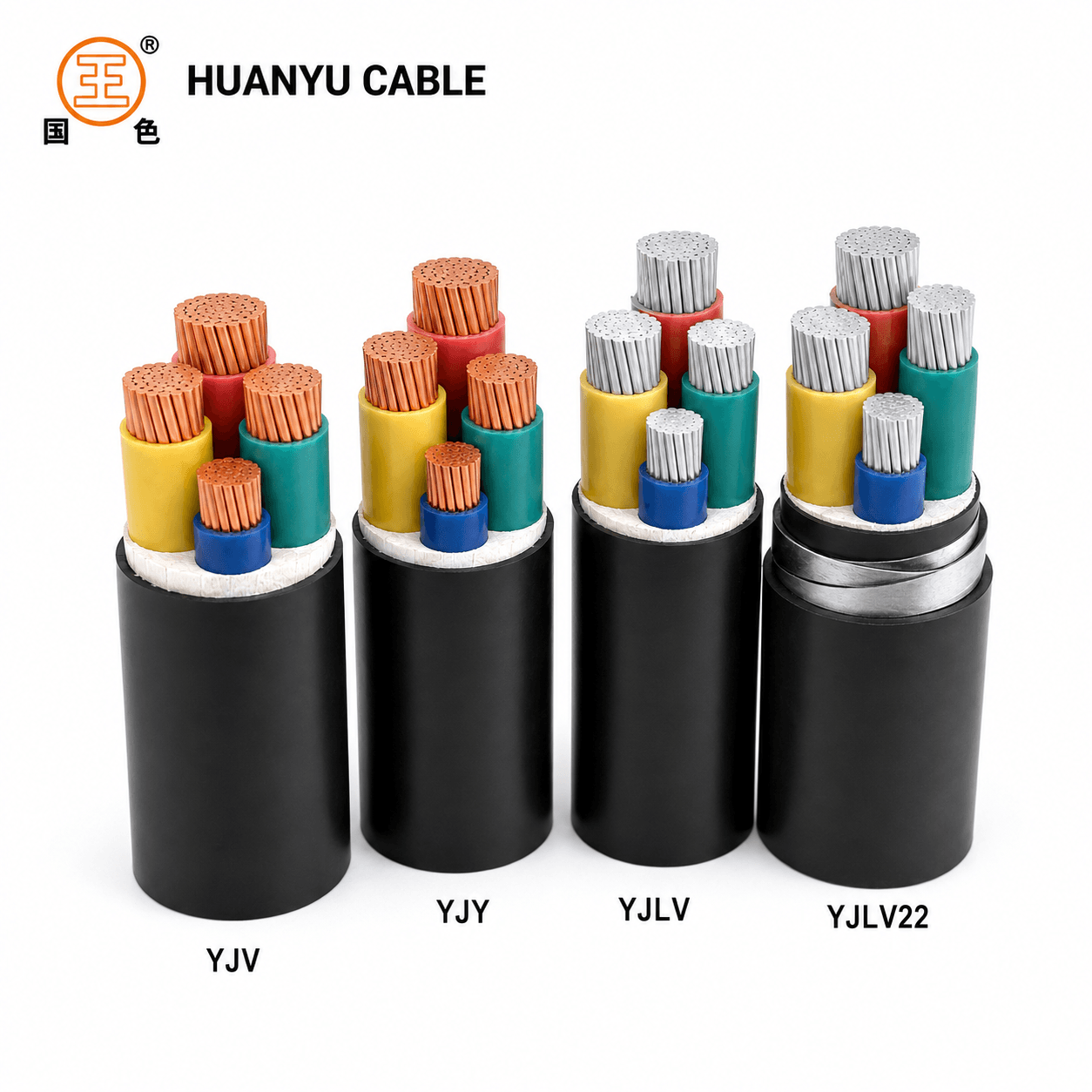

YJV, YJY, YJLV and YJLV22 reference families
YJY
XLPE insulated PE sheathed power cable with copper conductor, typically chosen when better sheath durability or moisture resistance is desired.
YJLV
Aluminium conductor XLPE insulated PVC sheathed power cable, used as a cost-effective alternative in fixed low-voltage power distribution projects.

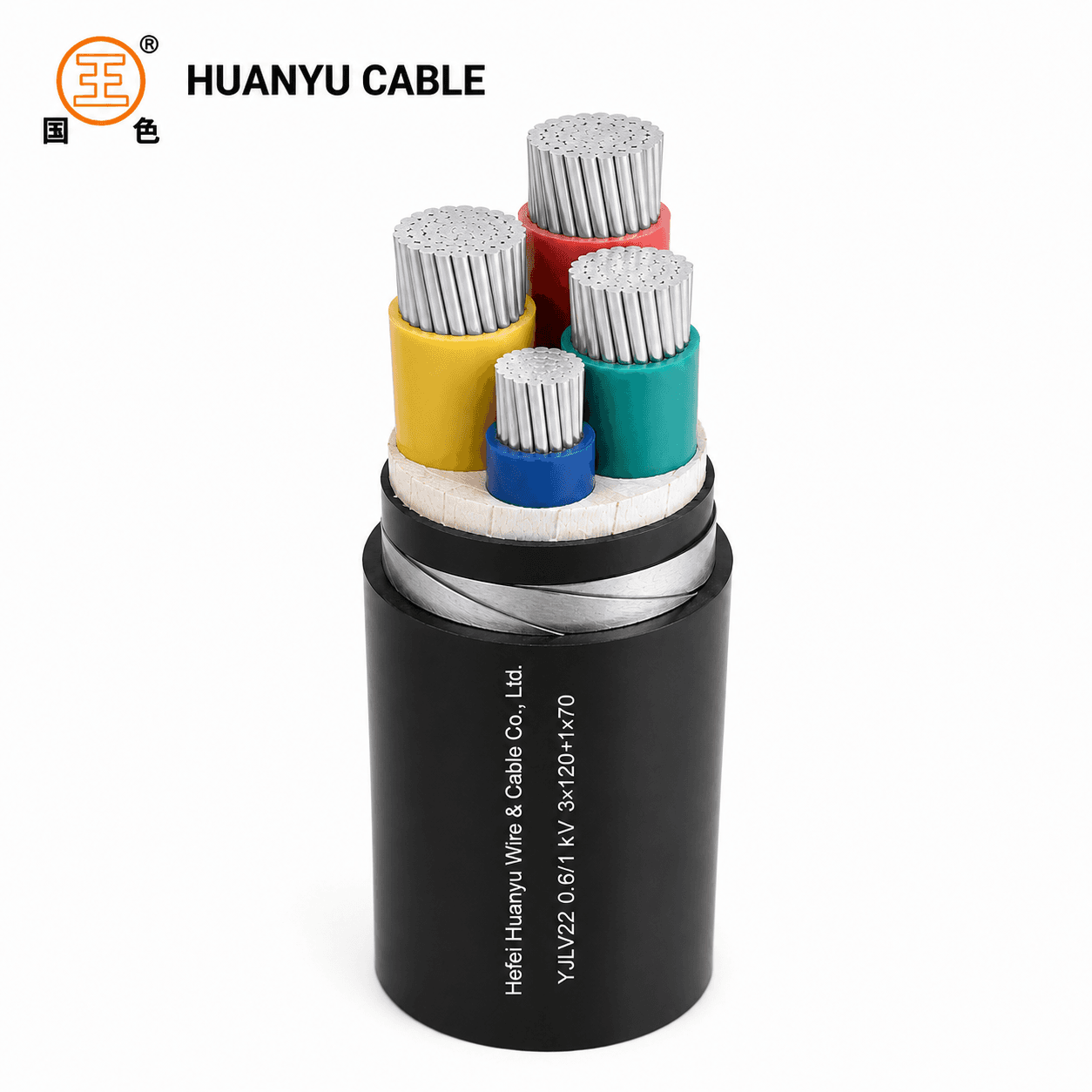

YJLV22
Aluminium conductor XLPE insulated steel tape armoured PVC sheathed power cable for fixed installations requiring additional mechanical protection.
Common Chinese Model References
Common Low-Voltage XLPE Cable Types

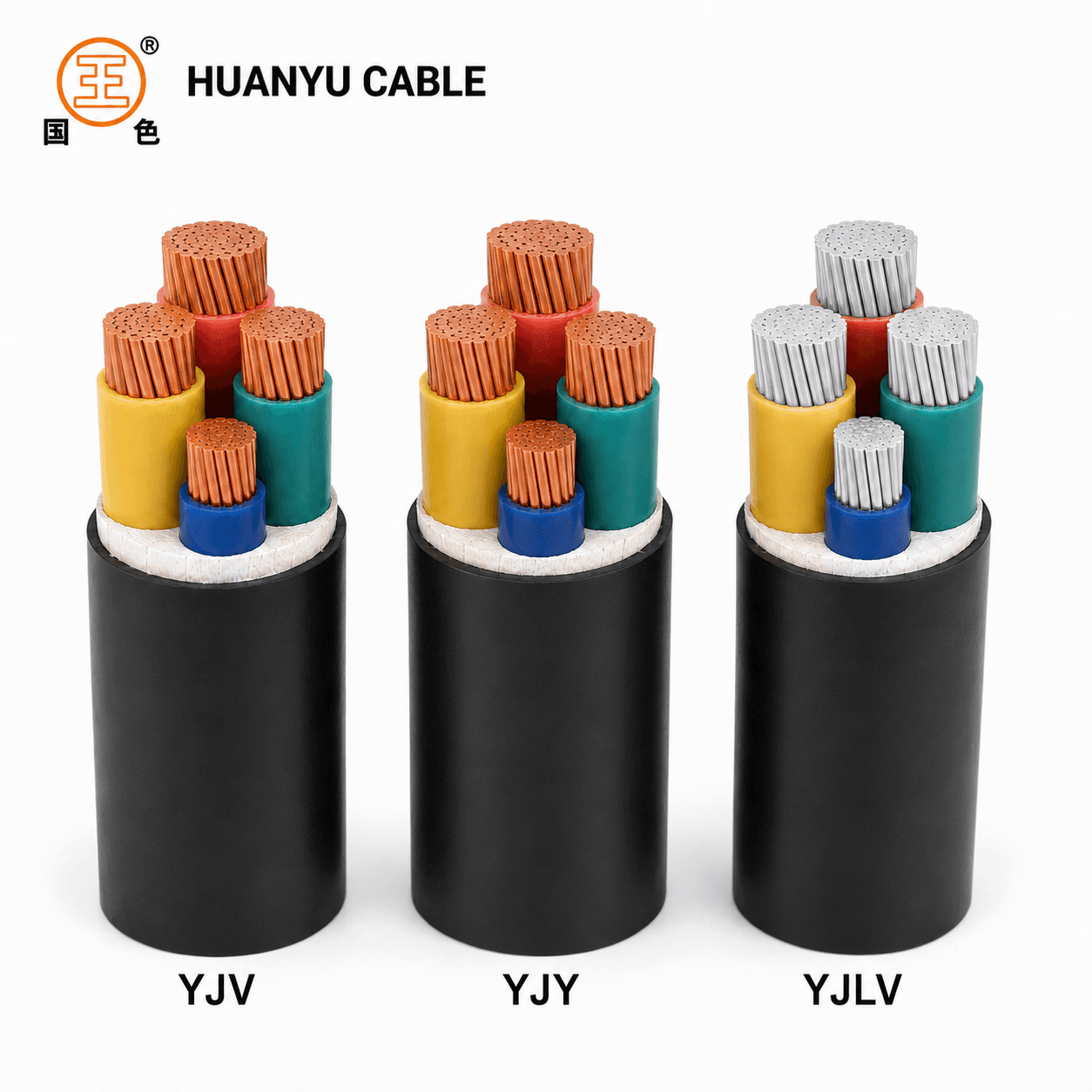

| Chinese Type | Recommended English Name | Typical Structure | Typical Application |
|---|---|---|---|
| YJV | Cu Conductor XLPE Insulated PVC Sheathed Power Cable | Copper conductor / XLPE insulation / filler / outer sheath | General low-voltage distribution projects |
| YJY | Cu Conductor XLPE Insulated PE Sheathed Power Cable | Copper conductor / XLPE insulation / filler / PE outer sheath | Low-voltage projects requiring PE sheath construction |
| YJLV | Al Conductor XLPE Insulated PVC Sheathed Power Cable | Aluminium conductor / XLPE insulation / filler / outer sheath | Project-reviewed aluminium conductor option |
| YJLV22 | Al Conductor XLPE Insulated Steel Tape Armoured PVC Sheathed Power Cable | Al conductor / XLPE insulation / filler / inner sheath / steel tape armour / outer sheath | Fixed installations requiring additional mechanical protection |
Key technical parameters
Common supply parameters for the family
Rated Voltage0.6/1 kV
ConductorCopper or aluminium, solid or stranded depending on size and standard requirement
InsulationXLPE
Outer SheathPVC for YJV / YJLV / YJLV22; PE for YJY
ArmourUnarmoured for YJV, YJY and YJLV; steel tape armoured for YJLV22
Core NumberSingle-core, 2-core, 3-core, 4-core, 5-core, and multi-core with reduced neutral or earth conductor options
Cross-sectional AreaTypical examples include 2 × 4 mm², 3 × 25 + 1 × 16 mm², 3 × 70 + 1 × 35 mm², 4 × 50 mm² and 5 × 120 mm². Additional sizes can be reviewed against the project requirement.
StandardsGB/T 12706.1, IEC 60502-1, IEC 60228
InstallationIndoor, outdoor, cable trench, duct, tunnel and underground fixed installation depending on cable structure
Optional VariantsFlame retardant, LSZH or fire-resistant variants can be introduced separately under related product pages
RFQ Essentials
- Voltage rating: 0.6/1 kV or 1.8/3 kV
- Copper or aluminium conductor
- Number of cores and cross-section
- Unarmoured or project-specified armour requirement
- PVC or PE outer sheath
- Required cable length and packing
- Applicable standard, required tests and delivery documents
Testing and document requirements can be reviewed according to the confirmed project specification.
Low-voltage XLPE insulated power cables for fixed installation
YJV, YJY, YJLV and YJLV22 are low-voltage XLPE insulated power cables for fixed installation and power distribution. They are available in copper and aluminium conductor options, with PVC or PE sheath options, and can be supplied in both unarmoured and steel tape armoured structures according to project requirements.
Typical examples for quotation discussion
- YJV 0.6/1 kV 3 × 70 mm² + 1 × 35 mm²
- YJY 0.6/1 kV 4 × 50 mm²
- YJLV 0.6/1 kV 4 × 95 mm²
- YJLV22 0.6/1 kV 3 × 120 mm² + 1 × 70 mm²
- Other sizes can be reviewed upon request
Applications
Where this product family is commonly used
Building & Facility Distribution
Suitable for fixed low-voltage power distribution in buildings, commercial facilities and industrial workshops.
Industrial Installation
Used in cable trench, duct, indoor and outdoor fixed installations where reliable low-voltage power delivery is required.
Projects Requiring Mechanical Protection
YJLV22 provides additional mechanical protection for underground or protected route installation compared with unarmoured cable types.
Quotation review
Send the model, size and project requirement for review.
Huanyu Cable will confirm available construction, standard, quantity and document requirements before quotation.
