Huanyu Cable is a building wire manufacturer in China supplying PVC insulated house wiring cables including BV, BVR and BVVB for distributors, contractors and project buyers. Available conductor construction, voltage rating, size range, standard and project requirements are confirmed before quotation.
Start with conductor construction and cable form, then confirm the required standard, size, colour and packing before quotation.

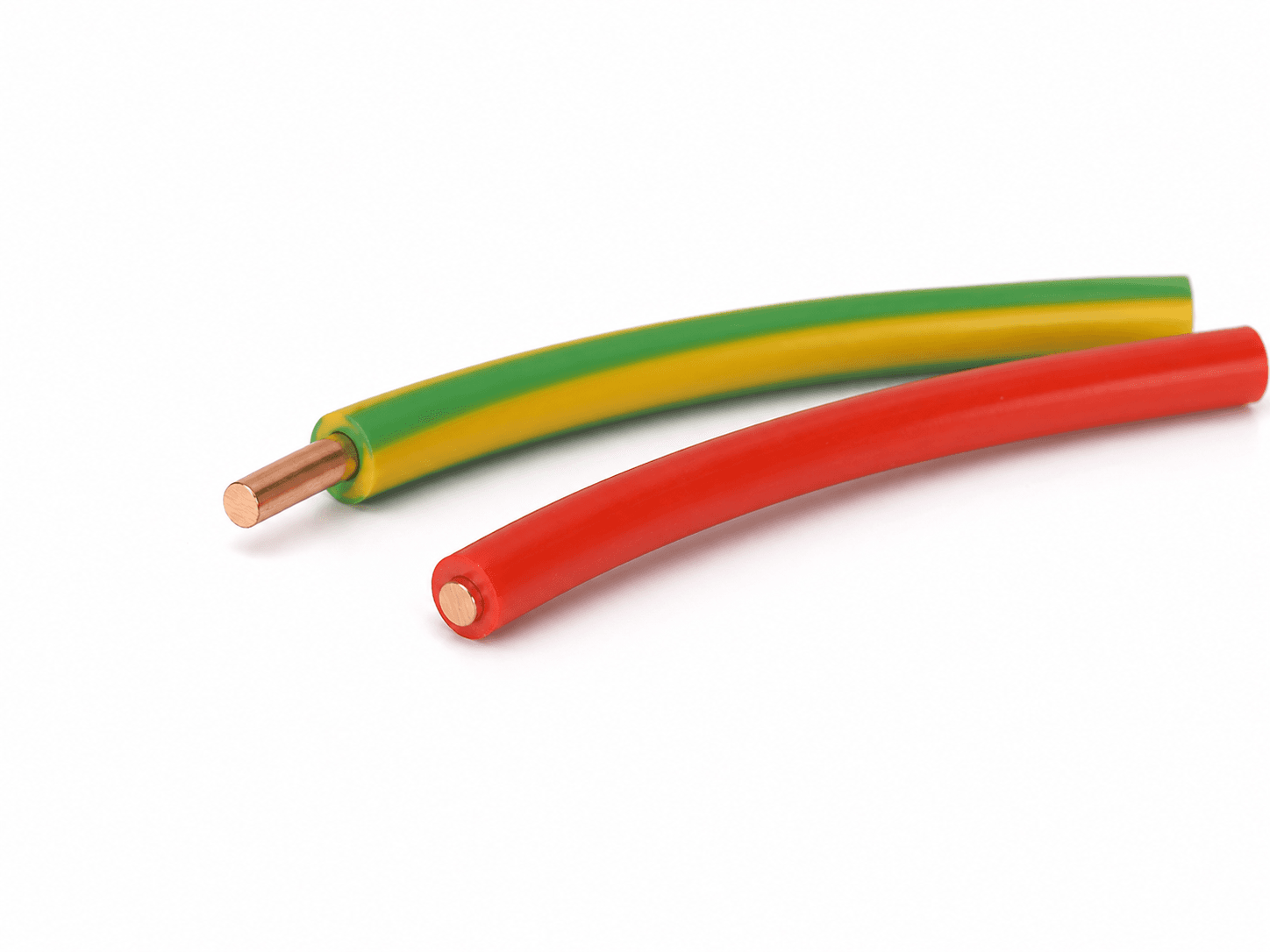

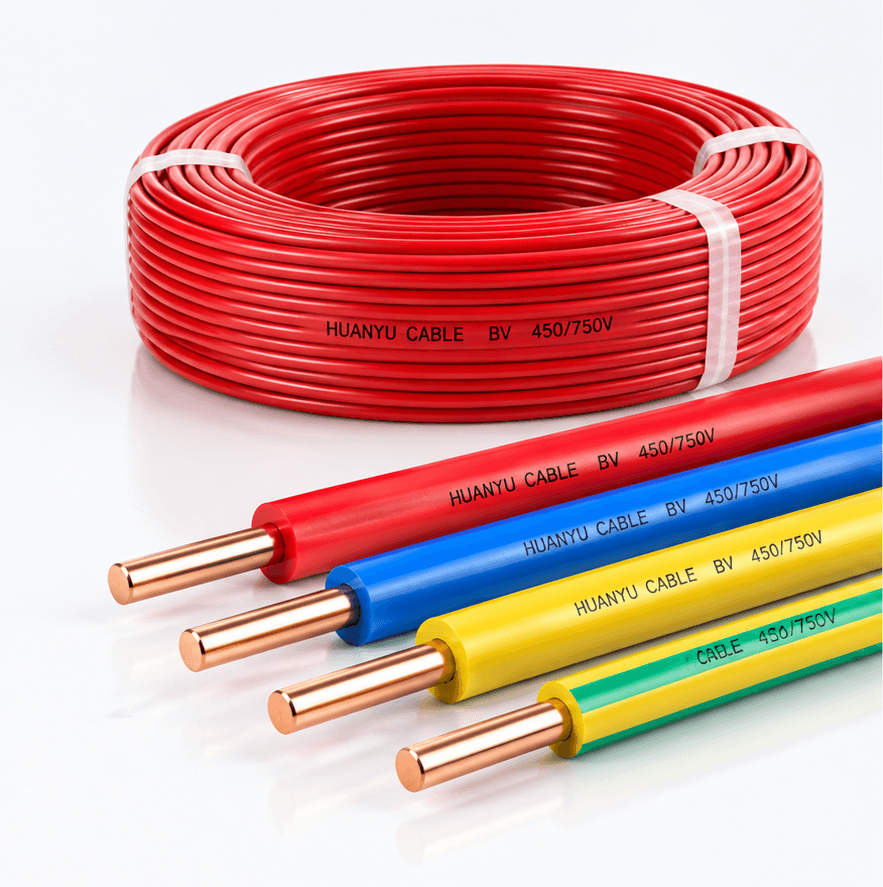

BVRigid copper conductor with PVC insulation for fixed building wiring. Solid or stranded rigid conductor construction is selected according to conductor size and the confirmed specification. 60227 IEC 01 is referenced for applicable constructions.

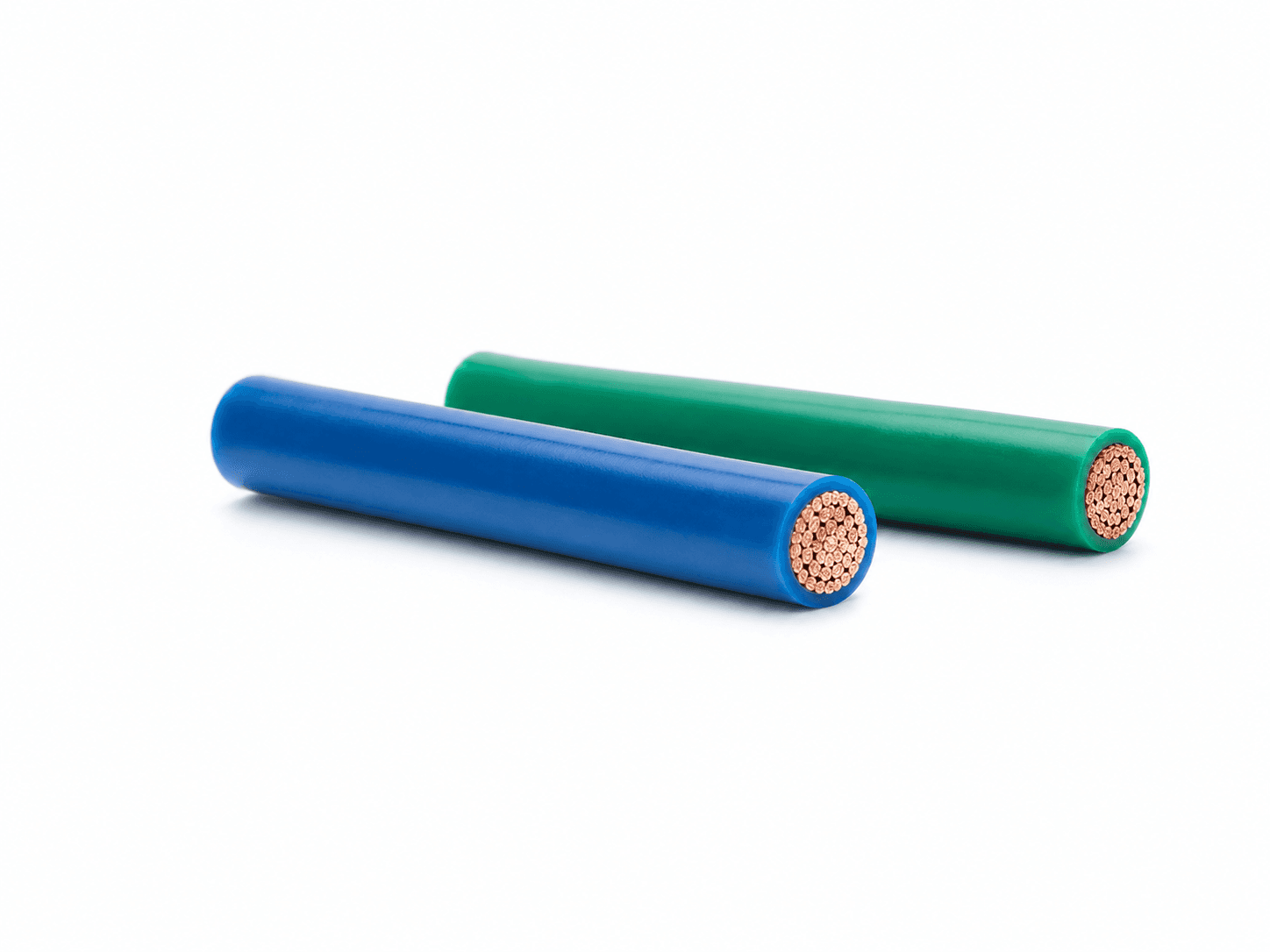

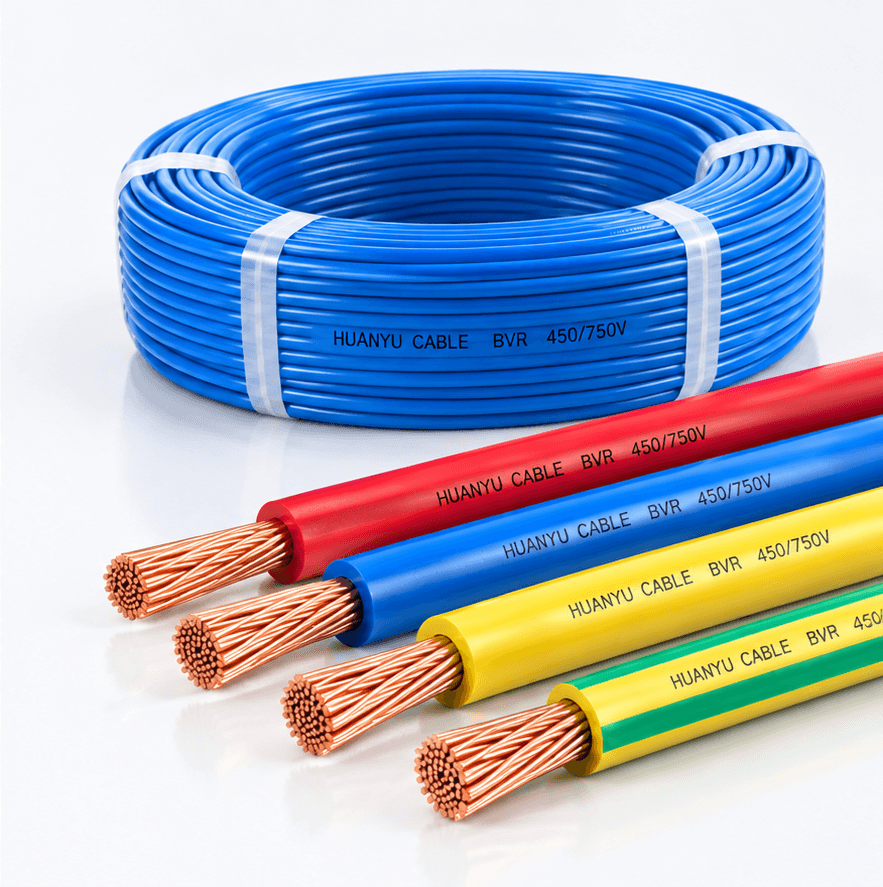

BVRFlexible stranded copper conductor with PVC insulation for fixed wiring routes where easier bending and routing are required.

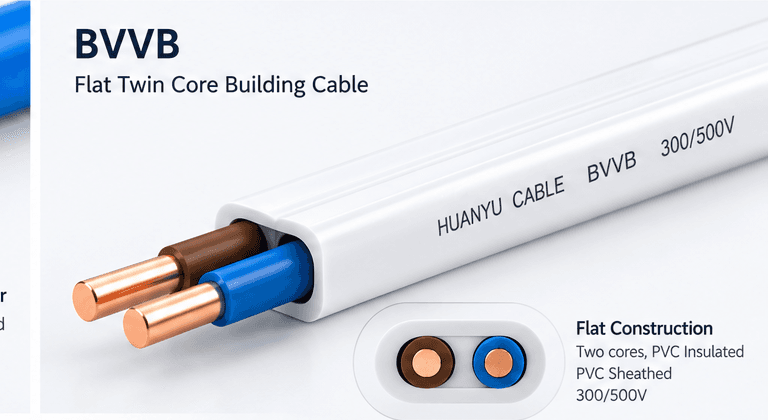

BVVBFlat two-core copper building cable with PVC insulation and PVC outer sheath for indoor fixed wiring applications.
Common building-wire sizes and extended sections are reviewed by product family and confirmed construction.
Common electrical wire colours and project-specific colour schedules can be reviewed before order confirmation.
Typical coil length is 100 m. Other export coil lengths, marking and packing can be reviewed according to confirmed order requirements.
Cable marking, coil labels and export packing details are confirmed with the order specification.
Private-label marking and packing can be reviewed according to quantity and confirmed requirements.
The Chinese model reference helps identify the product family; final conductor construction, dimensions and applicable standard are confirmed before quotation.
Commonly requested
Extended current commercial range: 50–300 mm²
60227 IEC 01 reference for applicable constructions.
Reference sizes with current technical data
Additional sizes are reviewed against the required conductor construction and product specification before quotation.
Current listed sizes
Swipe horizontally to compare →
| Item | BV | BVR |
|---|---|---|
| Rated voltage | 450/750V | 450/750V |
| Conductor material | Copper | Copper |
| Conductor type | Rigid | Flexible stranded |
| Insulation | PVC | PVC |
| Sheath | None | None |
| Typical role | General fixed wiring | Fixed wiring requiring easier bending / routing |

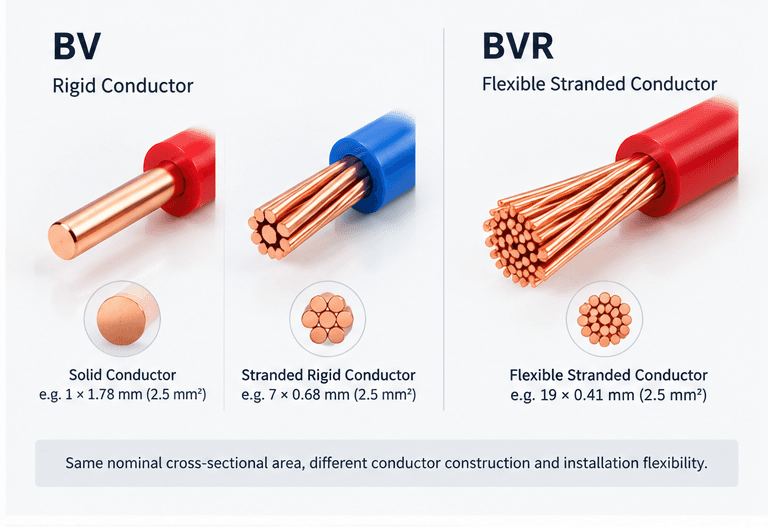

A rigid BV conductor may be solid or stranded depending on the size and confirmed construction. BVR uses a multi-strand flexible conductor.
Building-wire standards and product designations vary by market. Send the required standard, designation or technical specification with your RFQ so the conductor class, construction, dimensions, testing, marking and documentation can be reviewed before supply is confirmed.
Solid, stranded rigid and flexible stranded constructions are not interchangeable descriptions.
Electrical resistance is a key performance check alongside nominal cross section.
Insulation dimensions and integrity must follow the confirmed product specification.
Finished diameter or flat cable dimensions should match the confirmed construction.
Supplied length and packing should match the purchase specification.
Huanyu maintains current domestic manufacturing authorization and model-specific CCC documentation for selected building-wire products. Exact model scope is confirmed against the applicable certificate and order specification.
Review Quality & Credentials →BVVB uses two PVC-insulated copper cores within a flat PVC outer sheath. The flat construction is intended for indoor fixed wiring applications where the applicable local electrical code and project design permit this cable type.
Fixed interior wiring routes in houses and apartments, subject to the applicable local electrical code.
General interior fixed wiring for offices, shops and commercial facilities.
Single-core PVC wires used in suitable conduit or protected wiring systems according to the installation design.
Flexible BVR wiring for routes where easier bending and routing are required within the confirmed application.
Final conductor size, cable construction and installation method must follow the applicable local electrical code and project specification.
Typical coil length is 100 m. Other export coil lengths, marking and packing can be reviewed according to confirmed order requirements.
Building wires are part of Huanyu's current cable manufacturing range in Hefei, China. Production and release are supported by material checks, in-process control, routine testing and specification review before quotation and shipment.
Product or designation, size, colour, standard, quantity and destination.
Confirm conductor construction, standard, testing and document requirements.
Prepare price and commercial terms against the confirmed specification.
Confirm coil length, marking and private-label requirements where applicable.
Send the product family, size, standard, colour, coil length, quantity and destination. Partial information is welcome for initial review.
