Cable solutions for industrial control, signal transmission and automation systems. Final cable selection depends on circuit function, core or pair arrangement, shielding requirement, flexibility, motion type and installation environment. Instrumentation-specific pair / core arrangement, shielding and project-standard requirements are reviewed against the buyer’s specification.
Confirm core count, conductor size and pair arrangement where applicable
03
Shielding / Screening
Confirm whether shielding is required and how it should be configured
04
Flexibility & Motion
Confirm fixed, flexible, cable-carrier or robotic movement requirement
05
Installation Environment
Confirm routing, mechanical conditions and operating environment
06
Standard & Documentation
Confirm applicable project standard and required documents
02 / Application
In Industrial Automation Systems
Control and instrumentation-related cables are used between control equipment, machine components, field devices and moving automation systems. Cable selection depends on the circuit purpose, core or pair arrangement, shielding requirement, motion condition and installation environment.
Connection routes are illustrative only. Actual cable type, core or pair arrangement, shielding and motion requirements must be confirmed for the selected equipment and project specification.
Application illustration only — not an electrical wiring diagram.
01Control & Shielded route
02Signal & Data route
03Motion & Automation route
03 / Product families
Choose by Connection Task
Different automation connections may require different cable constructions. Start with the circuit or motion requirement, then confirm the final cable type against the project specification.
Flexibility and mechanical conditions to be confirmed
Shielding / screening where specified
Core arrangement and installation route by project
Cable-carrier flexing and robotic torsional movement are different motion conditions and should be reviewed separately.
04 / Representative constructions
Representative Cable Constructions
Different connection tasks may require different conductor, core, shielding and sheath arrangements. The examples below are provided for construction review reference only.
Representative examples only — actual conductor construction, core or pair arrangement, shielding, materials, dimensions and performance requirements shall be confirmed according to the selected cable type and project specification.
01

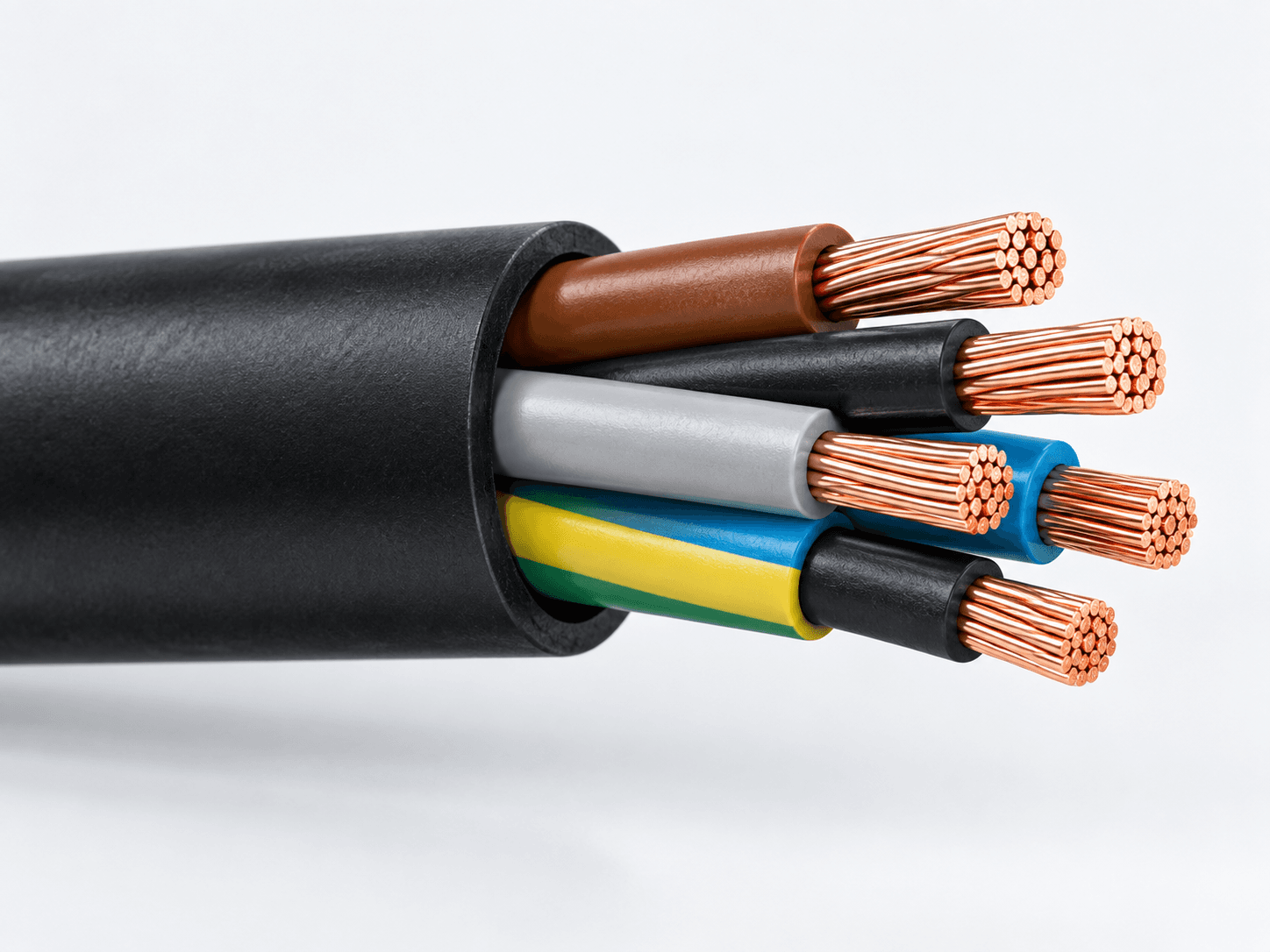

Multi-core Control Cable
KVV / KVVR
Insulated cores
Core assembly
Outer sheath
Representative unshielded control-cable construction only. Final core count, conductor construction, materials and dimensions depend on the selected cable type.
02

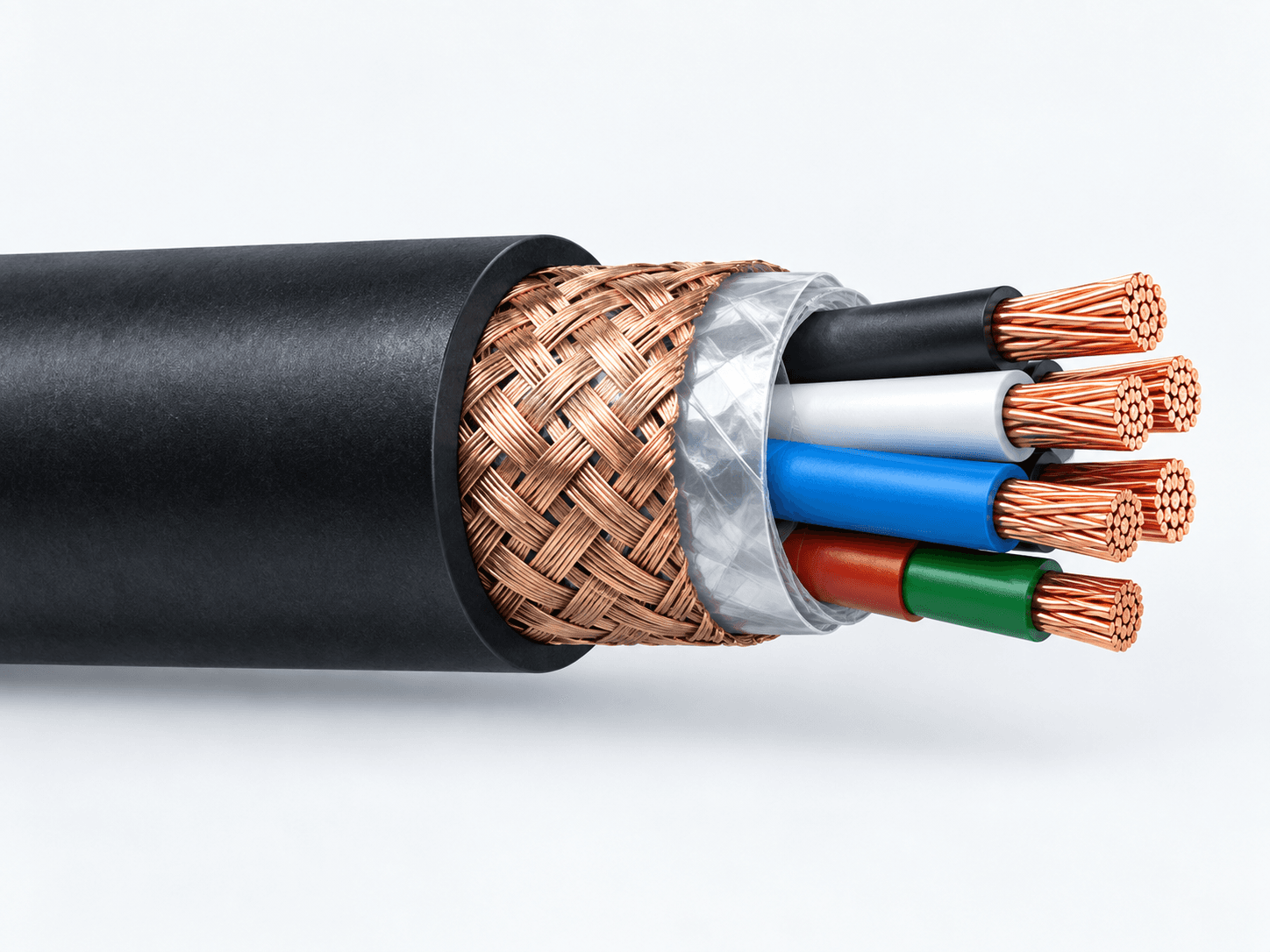

Shielded Control Cable
KVVP / KVVRP / RVVP
Insulated cores
Core assembly
Overall shielding / screening layer
Outer sheath
Representative shielded construction only. Exact shielding method and coverage depend on the selected cable type.
03

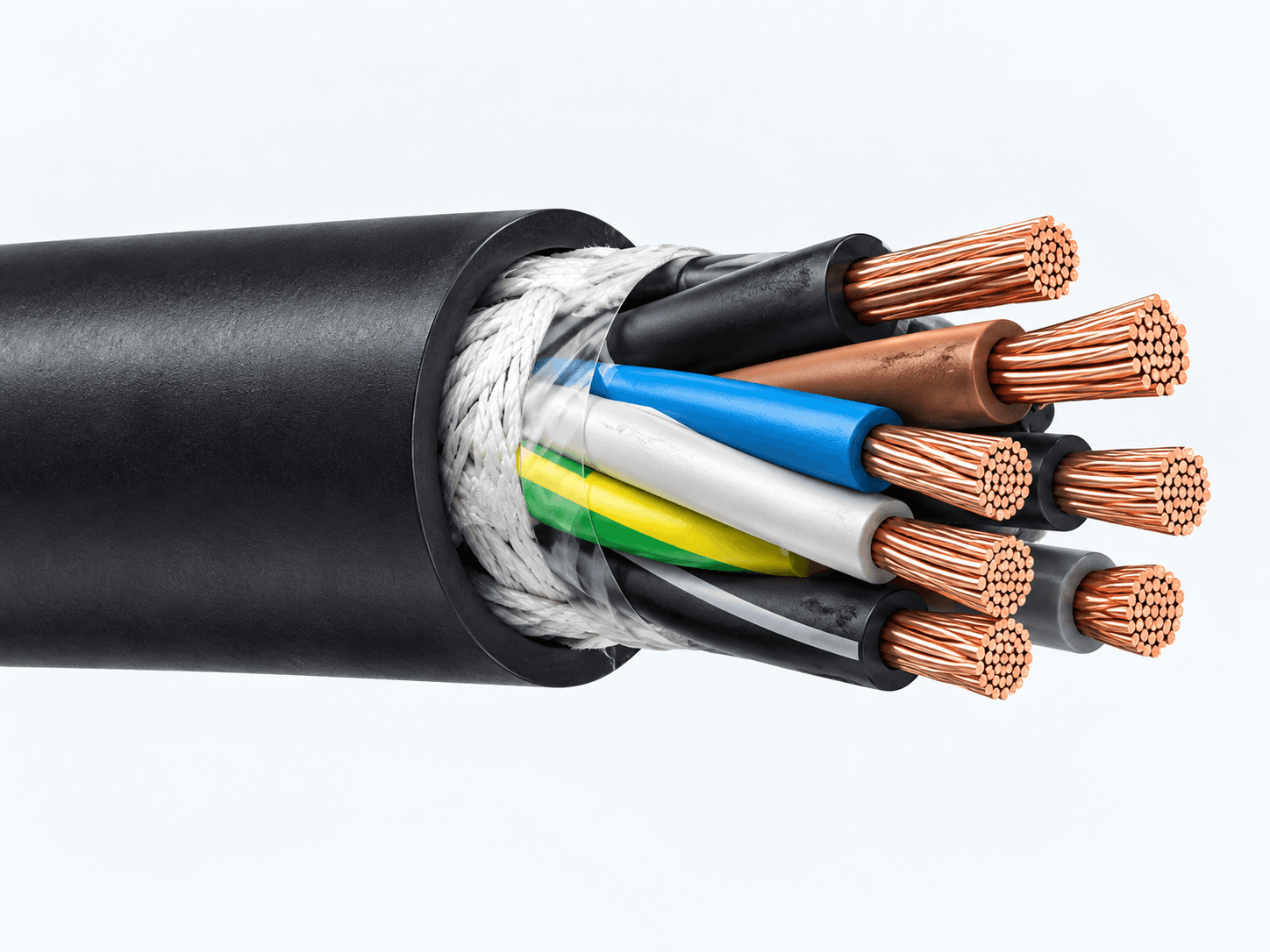

Dynamic Motion Cable
TRVV / TRVVP / Robot Cable
Insulated cores
Core assembly
Outer sheath
Representative dynamic-motion cable only — cable-carrier and robotic applications may require different conductor, stranding, shielding and sheath designs according to the motion profile.
TRVVP or selected motion cables may require shielding. Final structure and motion-performance requirements must be confirmed by model and project.
Illustrative constructions only. Core colours, layer appearance and proportions do not define a specific cable model, material specification or wiring standard.
06 / Project enquiry
Request a Control & Instrumentation Cable Quote
If the specification is incomplete, send the available BOQ, drawing or datasheet. Huanyu can review the information and identify the cable details still required for quotation.
Information to include
Application / connection purpose
Control / signal / serial-data / motion requirement
