0.6/1 kV low-voltage power cables with copper conductors, XLPE insulation and steel tape armour, designed for fixed power transmission and distribution systems requiring mechanical protection.

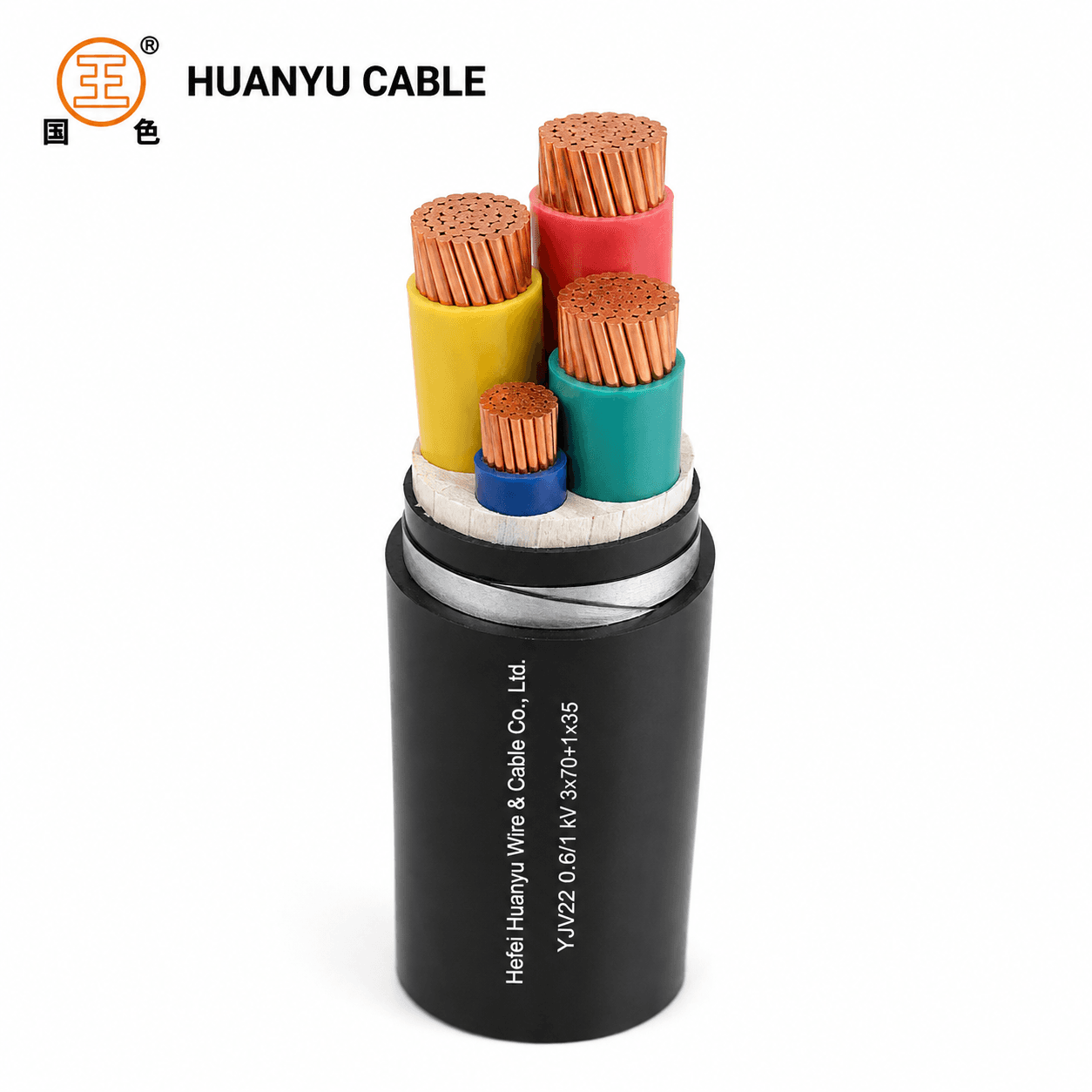

Product image from the approved Low Voltage XLPE product asset package.
YJV22 and YJV23 are low-voltage XLPE insulated steel tape armoured power cables for AC power lines with rated voltage up to 0.6/1 kV. They are used for transmitting electrical power in fixed installations where the cable requires additional mechanical protection.

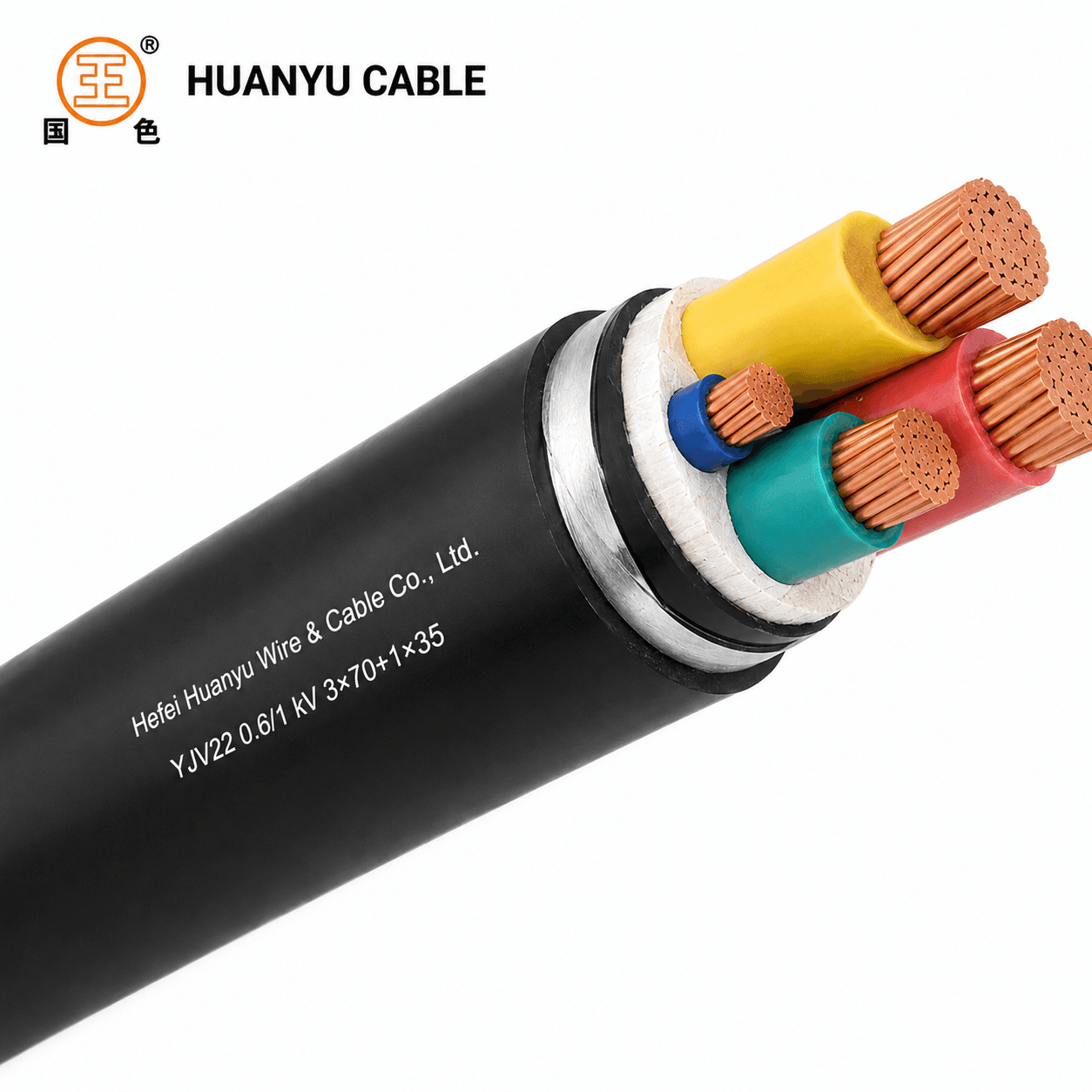

This means three main phase cores with 70 mm² nominal cross-section and one smaller neutral or protective core with 35 mm² nominal cross-section.

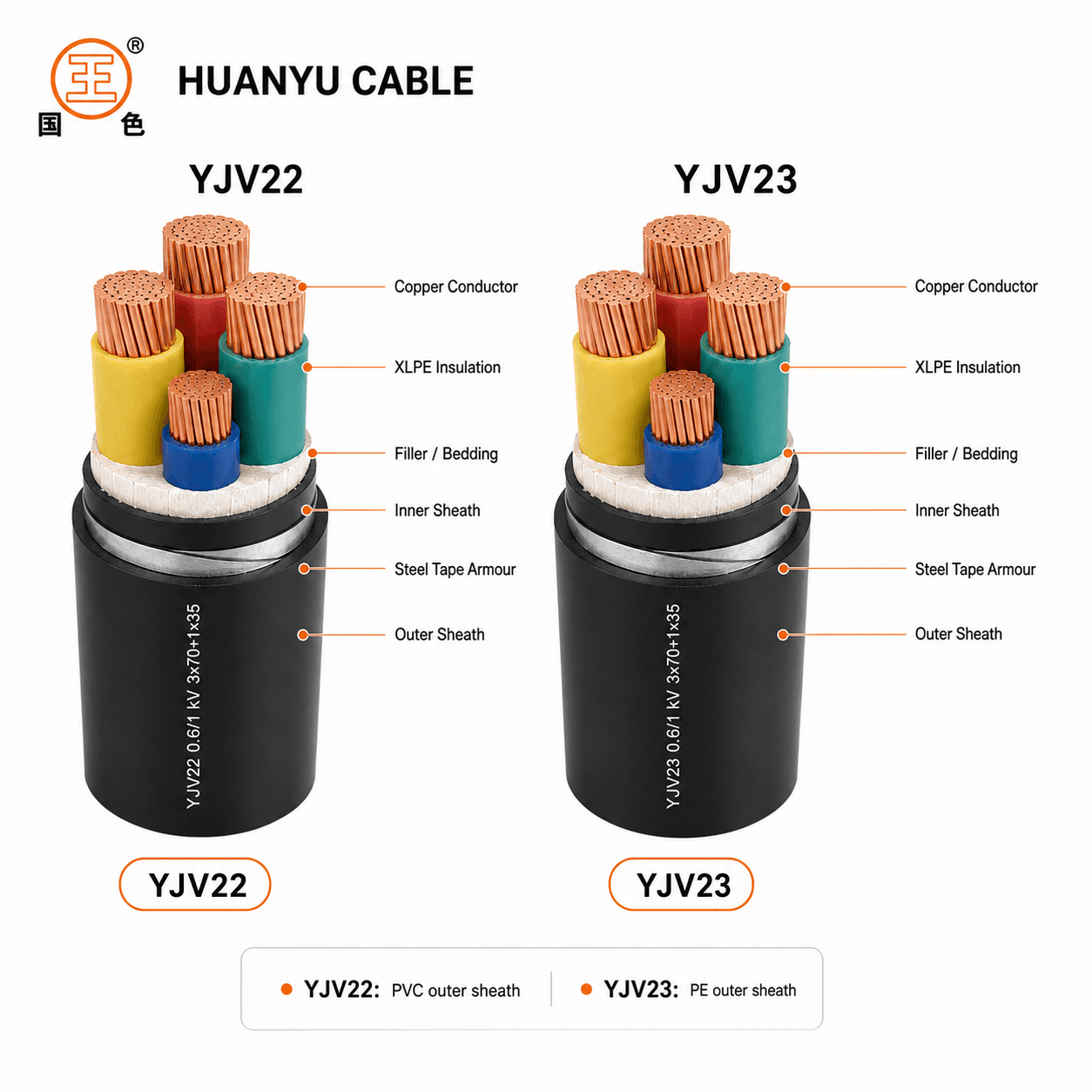

| Type | Recommended English Name | Typical Structure | Main Difference |
|---|---|---|---|
| YJV22 | XLPE Insulated Steel Tape Armoured PVC Sheathed Power Cable | Copper conductor / XLPE insulation / filler / PVC inner sheath / steel tape armour / PVC outer sheath | PVC outer sheath, suitable for general fixed power distribution and underground or cable trench installations. |

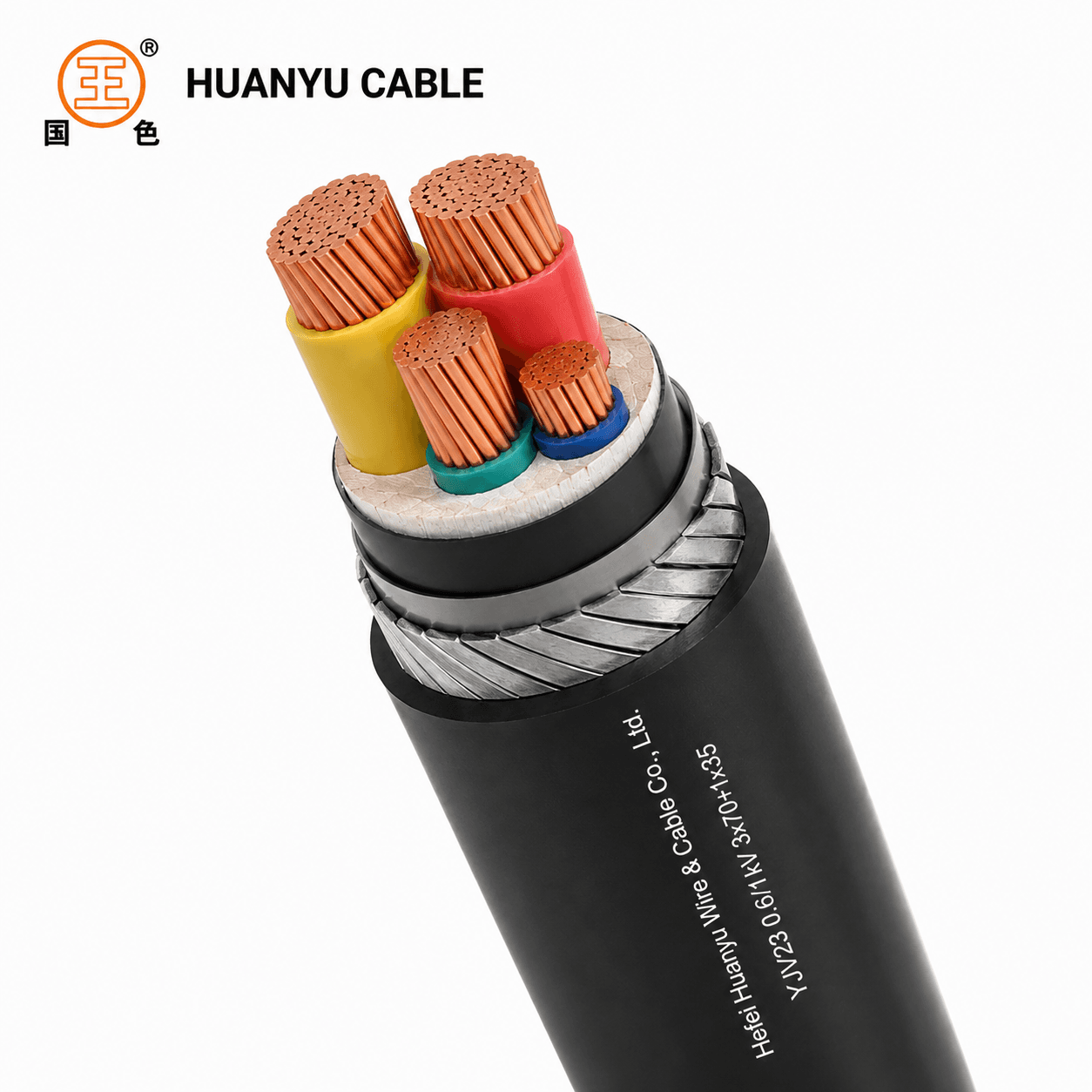

| YJV23 | XLPE Insulated Steel Tape Armoured PE Sheathed Power Cable | Copper conductor / XLPE insulation / filler / PVC inner sheath / steel tape armour / PE outer sheath | PE outer sheath, selected where improved moisture resistance and sheath durability are required. |
Suitable for fixed low-voltage power transmission and distribution systems.
Ideal for installation routes requiring additional mechanical protection.
Used in buildings, industrial plants, utilities and infrastructure power systems.
Huanyu Cable will confirm available construction, standard, quantity and document requirements before quotation.
