Project-oriented cable families for requirements referencing 60245 IEC 53, 57 and 66.
Final construction, materials, available size range, application suitability and documentation are confirmed against the requested designation and project specification.
60245 IEC 53, 57, 66 or another project-specified designation
02
Rated Voltage
Confirm the voltage reference required by the project
03
Cores & Conductor Size
Confirm number of cores and nominal conductor cross-section
04
Connection Duty
Confirm the equipment connection and expected handling / movement
05
Installation Conditions
Confirm the actual installation and environmental conditions
06
Standard & Documents
Confirm the required standard, edition and project documentation
02 / Product Families
60245 IEC 53 / 57 / 66 Product References
Use the requested designation as the starting point; confirm the final construction and project specification before quotation.
60245 IEC 53
Ordinary Tough Rubber-Sheathed Cord
China type reference: YZ
300/500 V reference
For RFQs referencing 60245 IEC 53. Final construction, available size range and required documentation are confirmed against the project specification.
60245 IEC 57
Ordinary Polychloroprene or Equivalent Synthetic Elastomer Sheathed Cord
China type reference: YZW
300/500 V reference
For RFQs referencing 60245 IEC 57. Final construction, material requirements, available size range and documentation are confirmed before quotation.
60245 IEC 66
Heavy Polychloroprene or Equivalent Synthetic Elastomer Sheathed Flexible Cable
China type reference: YCW
450/750 V reference
For RFQs referencing 60245 IEC 66. Final construction, available size range, application requirements and documentation are confirmed against the project specification.
For RFQs referencing 60245 IEC 53. Final construction, available size range and required documentation are confirmed against the project specification.
For RFQs referencing 60245 IEC 57. Final construction, material requirements, available size range and documentation are confirmed before quotation.
For RFQs referencing 60245 IEC 66. Final construction, available size range, application requirements and documentation are confirmed against the project specification.

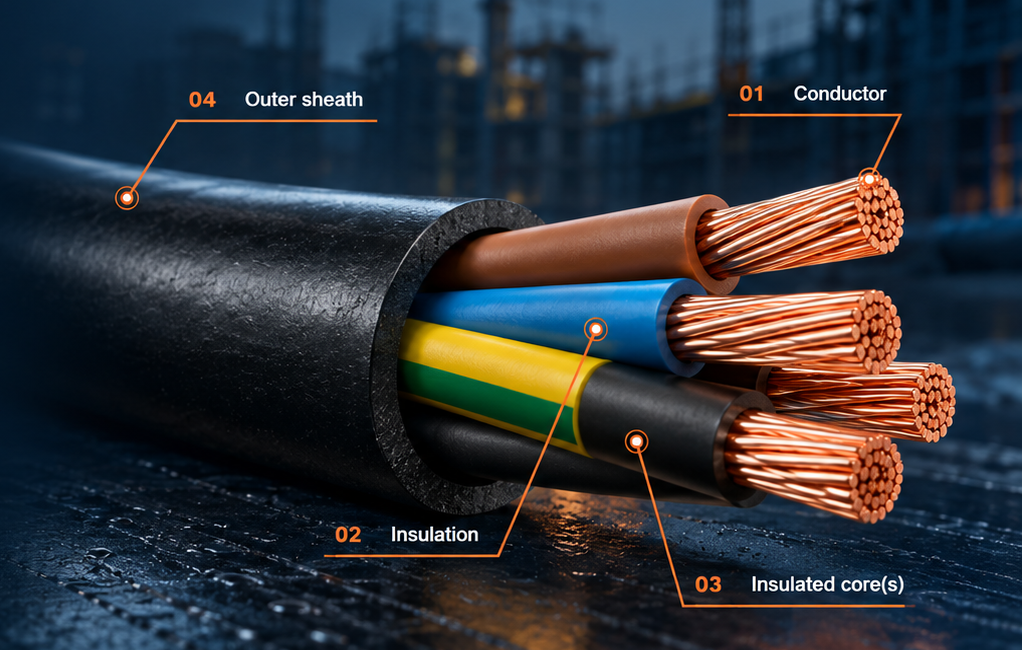

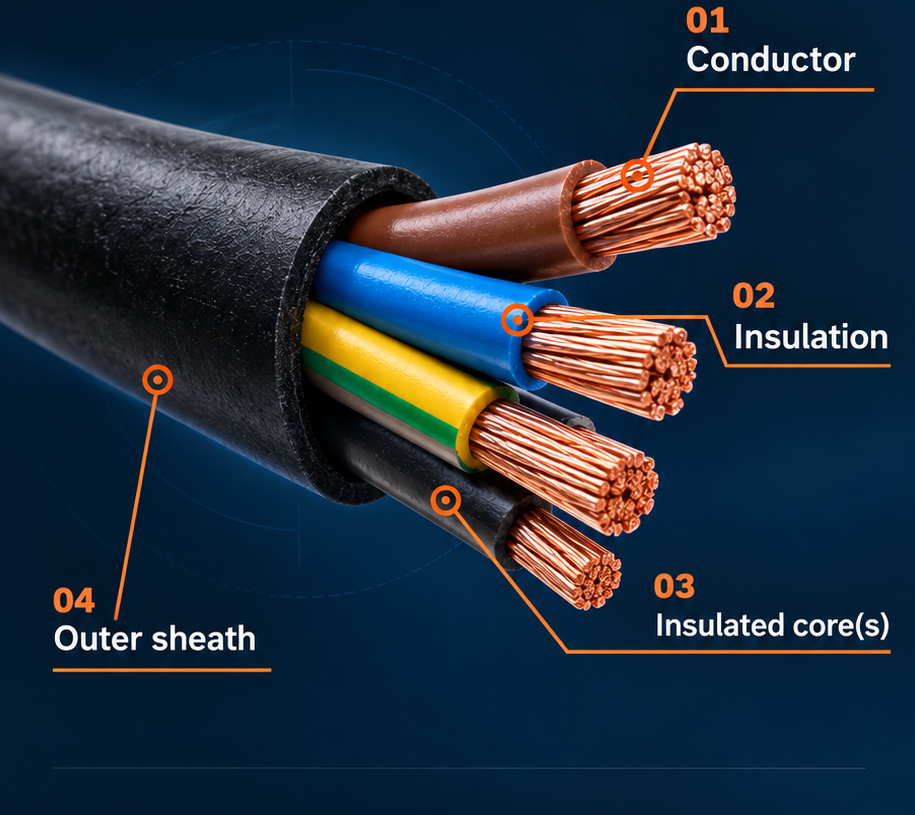

Representative multicore construction only. Actual conductor construction, core count, insulation and sheath materials, dimensions and performance requirements depend on the selected cable type and confirmed project specification.
04 / Application Context
Typical Equipment-Connection Contexts
01

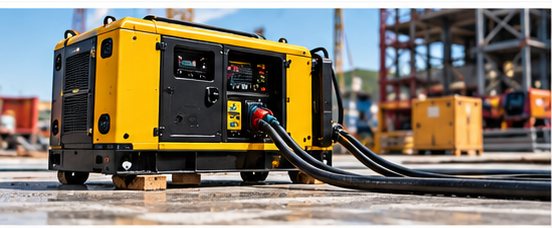

Portable / Movable Equipment
For project requirements involving portable or movable electrical equipment where a 60245 IEC flexible-cable designation is specified.
02

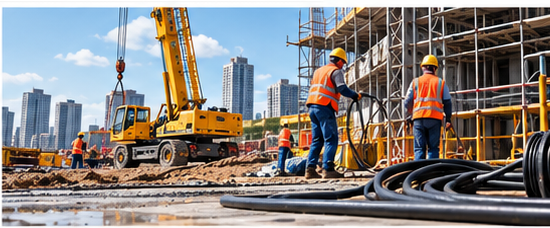

Construction & Maintenance Equipment
For construction or maintenance equipment connections where the requested cable designation and operating conditions are confirmed.
03

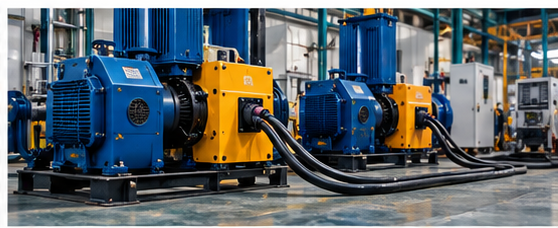

Industrial Equipment & Workshops
For industrial equipment and workshop connections where the project specification calls for a rubber- or elastomer-sheathed flexible cable family.
Application examples are illustrative only. Final cable selection depends on the requested designation, electrical requirements, installation conditions and project specification.
05 / Project Documentation
Documents to Confirm for the Project
Document availability and certificate scope are confirmed only after the cable designation and final project specification are defined.
Technical datasheet
Test documents required by the project
Certificate, where specifically required and verified
Cable marking / packing requirement
Other project-specific documents
06 / Project Enquiry
Request a Rubber-Sheathed Flexible Cable Review
Requested cable designation
Required standard / edition
Rated voltage
Number of cores
Conductor size
Equipment / application
Expected movement / handling
Installation conditions
Any specific environmental / material requirement
Required certification / documents
Quantity / total length
Packing requirement
Destination
If the requirement is based on an international designation or customer datasheet, send the original specification for review rather than assuming an equivalent China type code.
