PV1-F Solar DC Cable

PV1-F is a flexible single-core solar DC cable for projects and markets specifically requesting the PV1-F designation.

Project reference: 2 PfG 1169/08.2007

Request a Quote Email BOQ / Specs

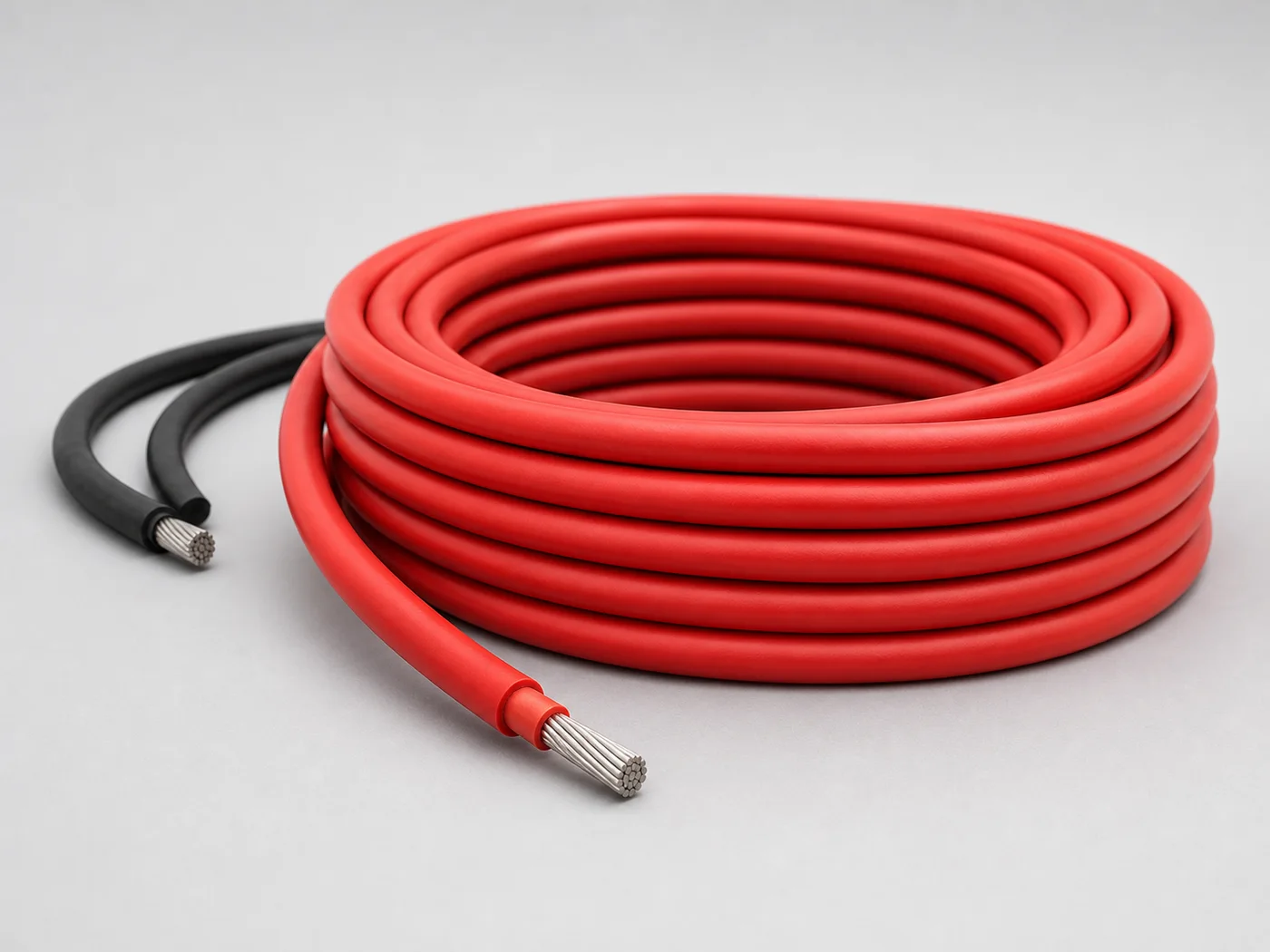

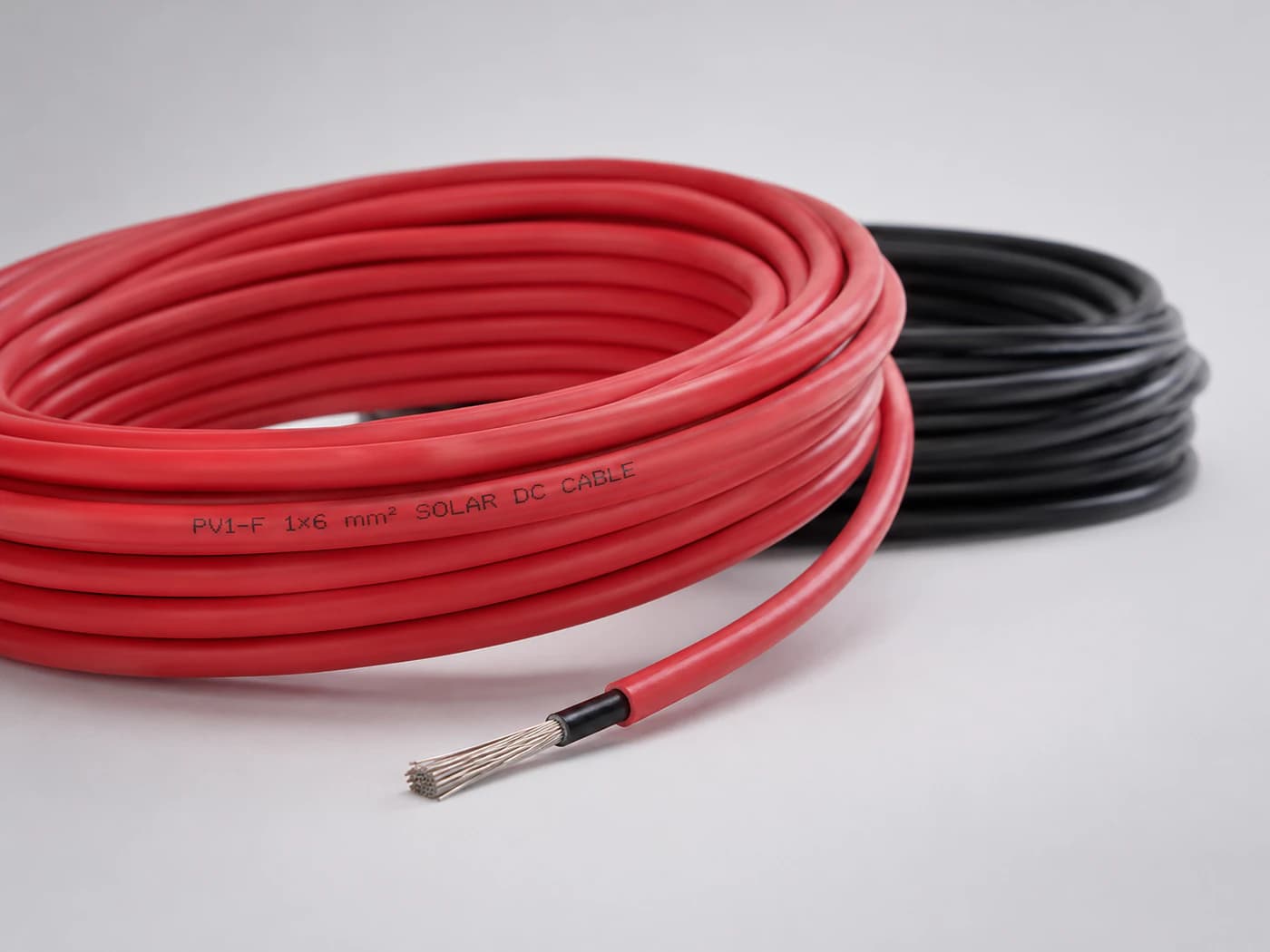

PV1-F red single-core solar DC cable with tinned copper conductor

Key ratings

Electrical and Temperature Ratings

Technical values summarized from the applicable reference document for cable selection and enquiry preparation.

Rated AC Voltage0.6/1 kV

DC System UseUp to 1.8 kV

Operating Temperature-40°C to +90°C

Short-circuit Temperature200°C / 5 s

Project quotation note

For PV1-F enquiries, share the required conductor size, cable colour, total length, packing method and DC connection scope. Please confirm whether the project references 2 PfG 1169/08.2007 and specify any required test reports, certificates or delivery documents. Document availability is confirmed against the final product and supply arrangement before quotation.

RFQ Essentials

Key details for solar DC cable review

Requested conductor size, commonly 4 mm² or 6 mm²
Required cable colour
Connection point: module, string, combiner box or inverter
Project standard or 2 PfG 1169/08.2007 reference
Total length and packing method
Required test reports, certificates and delivery documents

Product structure

Cable Construction

A Class 5 flexible tinned copper conductor with cross-linked insulation and outer sheath supports module, string, combiner box and inverter DC connections.

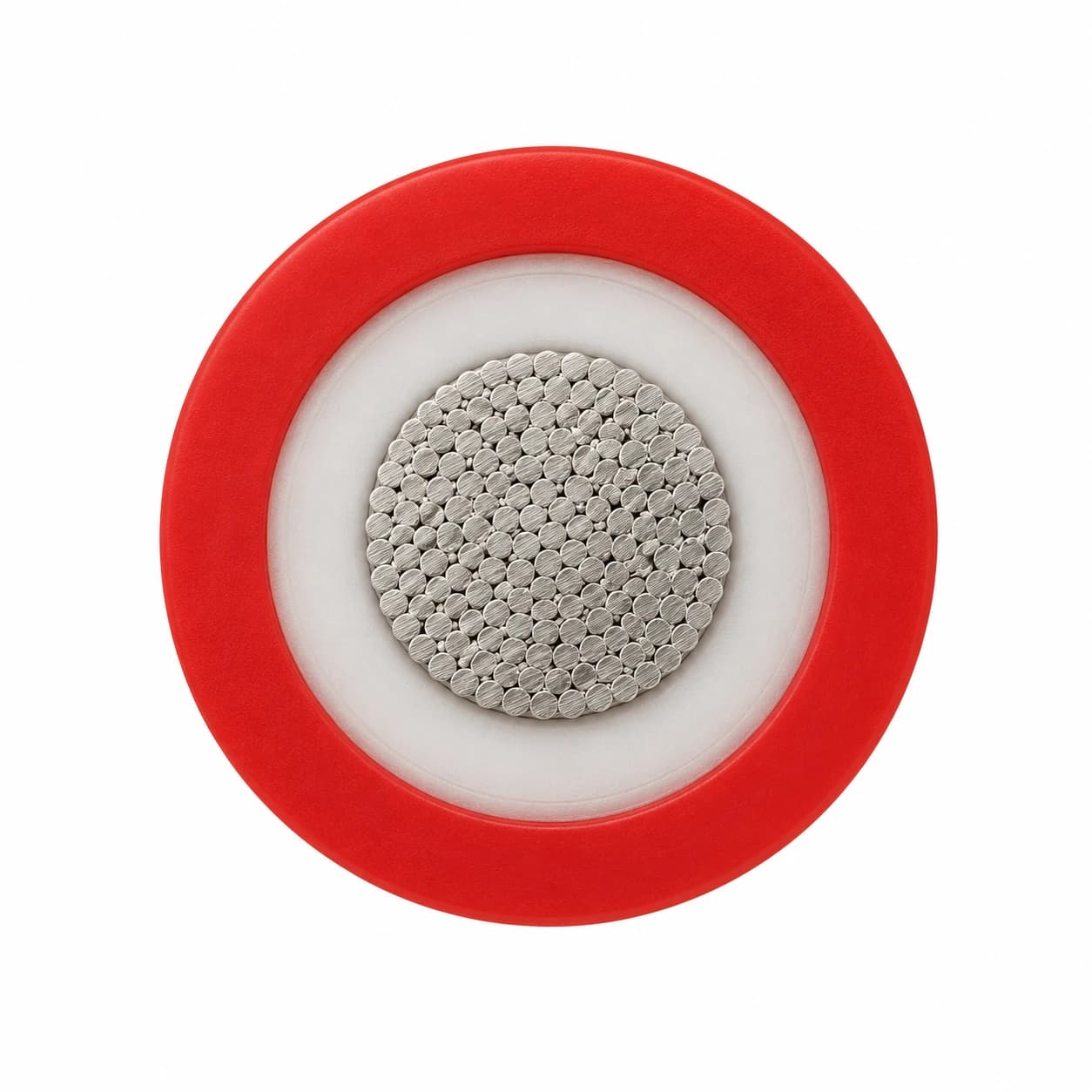

PV1-F Solar DC Cable cross-section with tinned copper conductor, white insulation and red outer sheath

01Class 5 Flexible Tinned Copper Conductor
02Cross-linked Insulation
03Cross-linked Outer Sheath

Technical characteristics

Performance Overview

PV1-F Construction for Specified Project Requirements

Electrical Performance

0.6/1 kV AC rated design with DC application conditions up to 1.8 kV, subject to the relationship defined by the reference specification.

Thermal Performance

Operating temperature range from -40°C to +90°C, conductor temperature up to 120°C under specified conditions and short-circuit temperature of 200°C for 5 seconds.

Mechanical Performance

Flexible conductor construction with low-temperature impact, bend, elongation, dynamic penetration and cut-propagation test requirements.

Environmental Resistance

UV weathering, ozone, damp heat, acid/alkali exposure and moisture-related requirements for outdoor photovoltaic use.

Fire and Chemical Behaviour

Flame propagation, smoke density, halogen content, pH, conductivity and toxicity-related requirements are included in the reference specification.

Ordering Formats

Red or black cable, supplied in coil or drum packing according to order requirements.

Cable sizes

Common Requested Sizes

1×2.5 mm²1×4 mm²1×6 mm²1×10 mm²1×16 mm²

Other sizes can be reviewed according to the required cable specification.

PV DC connections

Typical Application Conditions

Solar ModulesModule interconnection

String CircuitsString wiring

Combiner BoxesDC collection circuits

InvertersDC input connections

Compare PV1-F and H1Z2Z2-K project requirements in our Solar Cable Selection Guide. ->

For new projects following EN 50618, review H1Z2Z2-K Solar DC Cable. ->

Technical catalog

Solar PV Cable Catalog

Review the H1Z2Z2-K and PV1-F construction, ratings, performance categories and information required for quotation.

Download Solar PV Cable Catalog Request a Quote

Solar cable enquiry

Request a Solar Cable Quote

Send the cable designation, conductor size, quantity, colour, packing and delivery destination for quotation.
