Cable solutions for EV charging projects. Define the charging interface, electrical requirement, cable flexibility, installation environment and project specification before final cable selection.
Confirm connector / interface and connection requirement
02
Electrical Requirement
Confirm required voltage and current
03
Conductor / Core Arrangement
Confirm conductor size, number and function of cores
04
Cable Flexibility
Confirm fixed, flexible or frequently handled installation
05
Installation Environment
Confirm indoor / outdoor and operating conditions
06
Standard & Documentation
Confirm applicable project standard and required documents
02 / Application
Application in EV Charging Systems
EV charging cables are used between charging equipment and electric vehicles. Cable selection depends on the charging interface, electrical requirement, core arrangement, flexibility, installation method and operating environment.
Different charging projects may require different cable types and constructions. These application references help define the project requirement and do not imply that one cable construction fits every charging system.
Define each project requirement before cable selection. Final construction and document availability are confirmed against the selected cable type and project specification.
01
Electrical
Required voltage / current
Conductor size / cross-section
Core arrangement
Project electrical specification
02
Charging Interface
Connector / interface requirement
Connection position
Number and function of required cores
Control / communication requirement where applicable
03
Mechanical / Flexibility
Fixed or flexible installation
Handling / bending requirement
Mechanical protection requirement
Installation environment
04
Documentation
Applicable standard to be confirmed
Test reports where required
Certificate where specifically required
Other project-specific documents
01Electrical
Required voltage / current
Conductor size / cross-section
Core arrangement
Project electrical specification
02Charging Interface
Connector / interface requirement
Connection position
Number and function of required cores
Control / communication requirement where applicable
03Mechanical / Flexibility
Fixed or flexible installation
Handling / bending requirement
Mechanical protection requirement
Installation environment
04Documentation
Applicable standard to be confirmed
Test reports where required
Certificate where specifically required
Other project-specific documents
04 / Representative cable construction

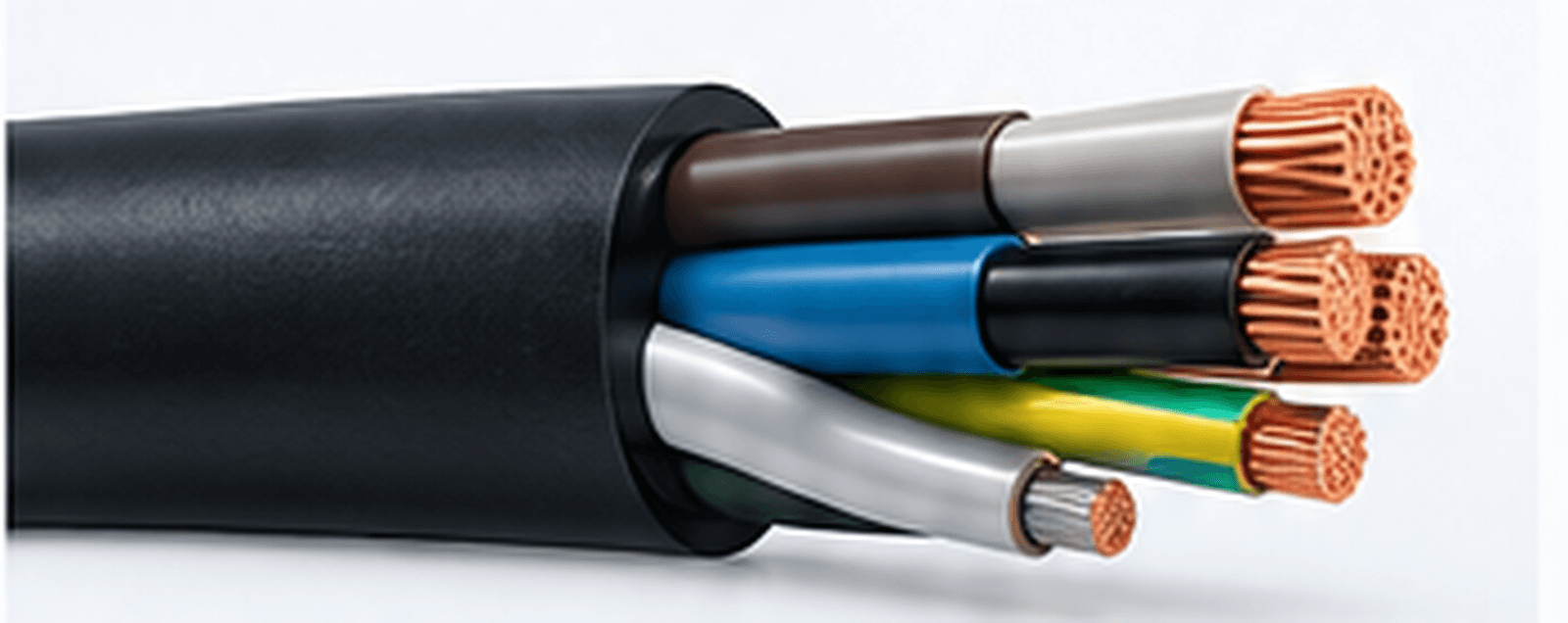

Representative EV Charging Cable Construction
EV charging cables may use different multi-core arrangements depending on the charging interface, electrical requirement and selected cable type. The example below is provided for construction review reference only.
Representative example only — actual core arrangement, materials, dimensions and optional screening shall be confirmed according to the selected cable type and project specification.
Illustrative construction only. Core colours and proportions do not define a specific product or wiring standard.
01
Power conductors
Insulated power cores; quantity and size depend on the selected cable type.
02
Additional signal / control core(s), where specified
Additional core(s) may be required for control, communication or auxiliary functions depending on the selected cable type.
03
Core assembly
Core arrangement and fillers depend on the selected cable construction.
04
Outer sheath
Outer protective sheath; material and performance requirements depend on the selected cable type and installation environment.
06 / Project enquiry
Request an EV Charging Cable Quote
If the specification is incomplete, send the available BOQ, drawing or datasheet. Huanyu can review the information and identify the cable details still required for quotation.
