Energy Storage Cables
Energy storage cable solutions reviewed against connection position, electrical requirements, cable construction and project specifications.
- Connection Position
Identify where the cable is installed.
- Voltage
State the required project voltage.
- Conductor Cross-section
Specify the required conductor size.
- Installation
Fixed or flexible installation requirements.
- Environment
Indoor / outdoor and operating conditions.
- Standard / Documentation
Define the applicable project requirements.

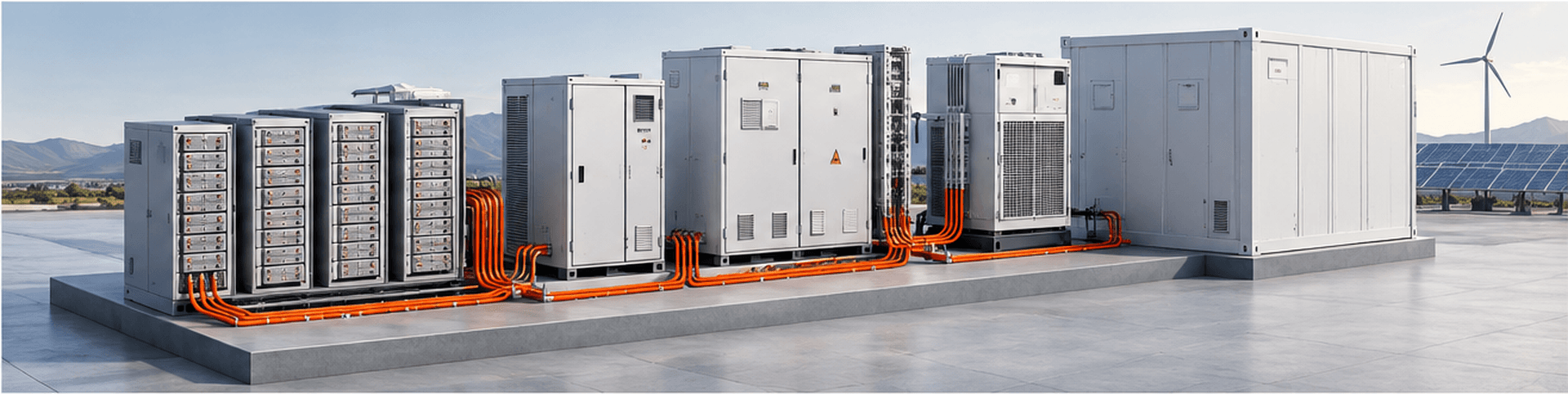

Application in ESS Systems
Cable requirements depend on the connection position within an ESS / BESS project and on the electrical, mechanical and environmental conditions.
Different ESS connection positions may require different cable types and constructions; these application references are used to define the project requirement, not to imply that one construction fits every connection.
Review selection factors
- Battery rack / cabinet related connections
- Internal ESS power connections
- Connections between energy-storage equipment
- Auxiliary project cable requirements
How to Select the Right Cable
Define the project requirements in each area. Performance and document availability are confirmed against the final cable specification.
Electrical
- Required voltage
- Conductor size / cross-section
- Project electrical specification
Installation
- Connection position
- Fixed or flexible installation
- Indoor / outdoor environment
Performance
- Mechanical requirement
- Temperature requirement
- Flame / halogen requirement if specified
- Oil / chemical / UV requirement if applicable
Documentation
- Applicable standard
- Required test reports
- Required certification or project documents
Electrical
- Required voltage
- Conductor size / cross-section
- Project electrical specification
Installation
- Connection position
- Fixed or flexible installation
- Indoor / outdoor environment
Performance
- Mechanical requirement
- Temperature requirement
- Flame / halogen requirement if specified
- Oil / chemical / UV requirement if applicable
Documentation
- Applicable standard
- Required test reports
- Required certification or project documents

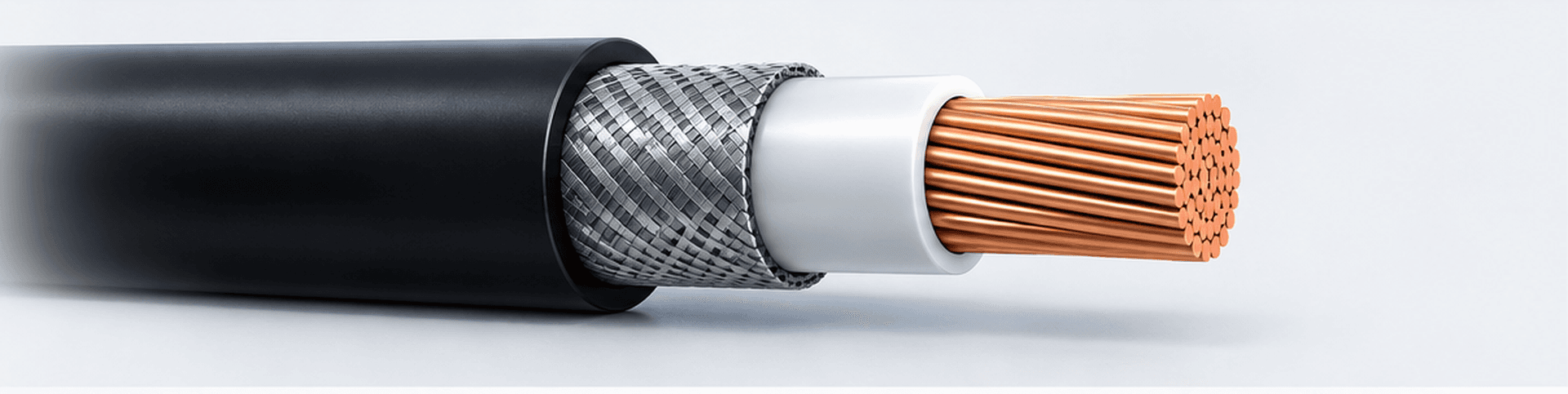

Representative Cable Construction
Energy storage cable applications may involve different conductor, insulation, protection and sheath arrangements depending on the connection position, electrical duty and installation conditions. The example below is provided for construction review reference only.
Representative example only — actual cable structure, materials and dimensions shall be confirmed according to the selected cable type and project specification.
- Conductor
Current-carrying conductor
- Insulation
Primary insulation layer
- Optional additional layer
Screening, tape or other additional layer, where specified.
- Outer sheath
Outer protective sheath
Project Documentation
Applicable standards and documentation requirements should be stated in the RFQ. Availability is confirmed against the final cable specification.
- Datasheet
- Routine or project test documentation
- Certificate where specifically required
- Packing and marking requirements
- Other project-specific documents
Request an Energy Storage Cable Quote
If the specification is incomplete, send the available BOQ, drawing or datasheet. Huanyu can review the information and identify the cable details still required for quotation.
Information to include
- Application / connection position
- Required voltage
- Conductor size / cross-section
- Cable construction / reference specification
- Quantity / total length
- Installation environment
- Applicable standard
- Required documentation
- Packing requirement
- Destination
- Delivery schedule if known
