Project cable solutions for structured cabling, CCTV and RF, fire alarm, audio and building communication systems. Final cable selection depends on system function, cable family, core or pair arrangement, shielding, installation environment and project requirements.
Confirm network, CCTV, RF, fire alarm, audio, telephone or other ELV purpose
Confirm the required cable family, category or model reference
Confirm conductor requirement, core count or pair arrangement where specified
Confirm whether shielding is required and how it should be configured
Confirm routing, installation method and operating environment
Confirm applicable standard, performance requirement and required documents

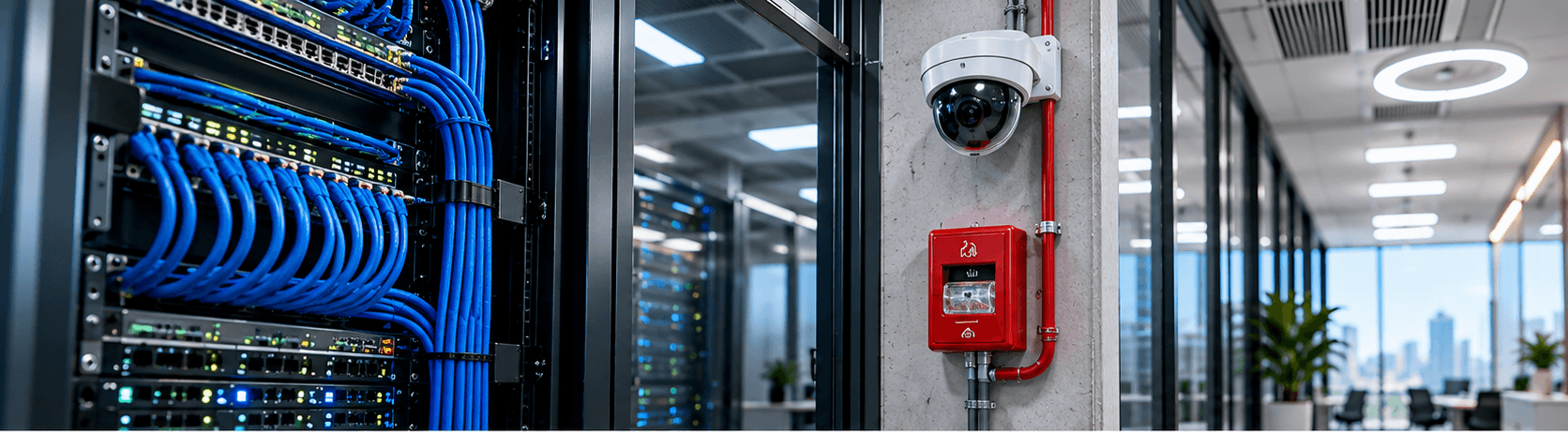

Communication and extra-low-voltage (ELV) cables are used across commercial buildings, industrial facilities, data centers, schools, hospitals, transportation hubs and public infrastructure. The final cable family should be selected according to the system function, routing method, installation environment and project specification.
System routes are illustrative only. Actual cable family, routing, quantity, installation method and performance requirements shall be confirmed according to the project design and specification.
Application illustration only — not an electrical wiring diagram.
Different ELV systems may require different cable constructions. Start with the system function, then confirm the final cable type against the project specification.
Representative familiesCat5e / Cat6 / Cat6A / Cat7
Representative familiesRG6 / RG11 / RG58 / RG59 / RG213 / RG316
CCTV systems may use network or coaxial cabling depending on the system design.
Representative familyFire Alarm Cable
Representative familiesAudio Cable / OFC Audio Speaker Cable / Telephone Cable (HYA)
Representative familiesCat5e / Cat6 / Cat6A / Cat7
Representative familiesRG6 / RG11 / RG58 / RG59 / RG213 / RG316
CCTV systems may use network or coaxial cabling depending on the system design.
Representative familyFire Alarm Cable
Representative familiesAudio Cable / OFC Audio Speaker Cable / Telephone Cable (HYA)
Different communication and ELV cable families may use different conductor, pair, shielding and sheath arrangements. The examples below are provided for construction review reference only.

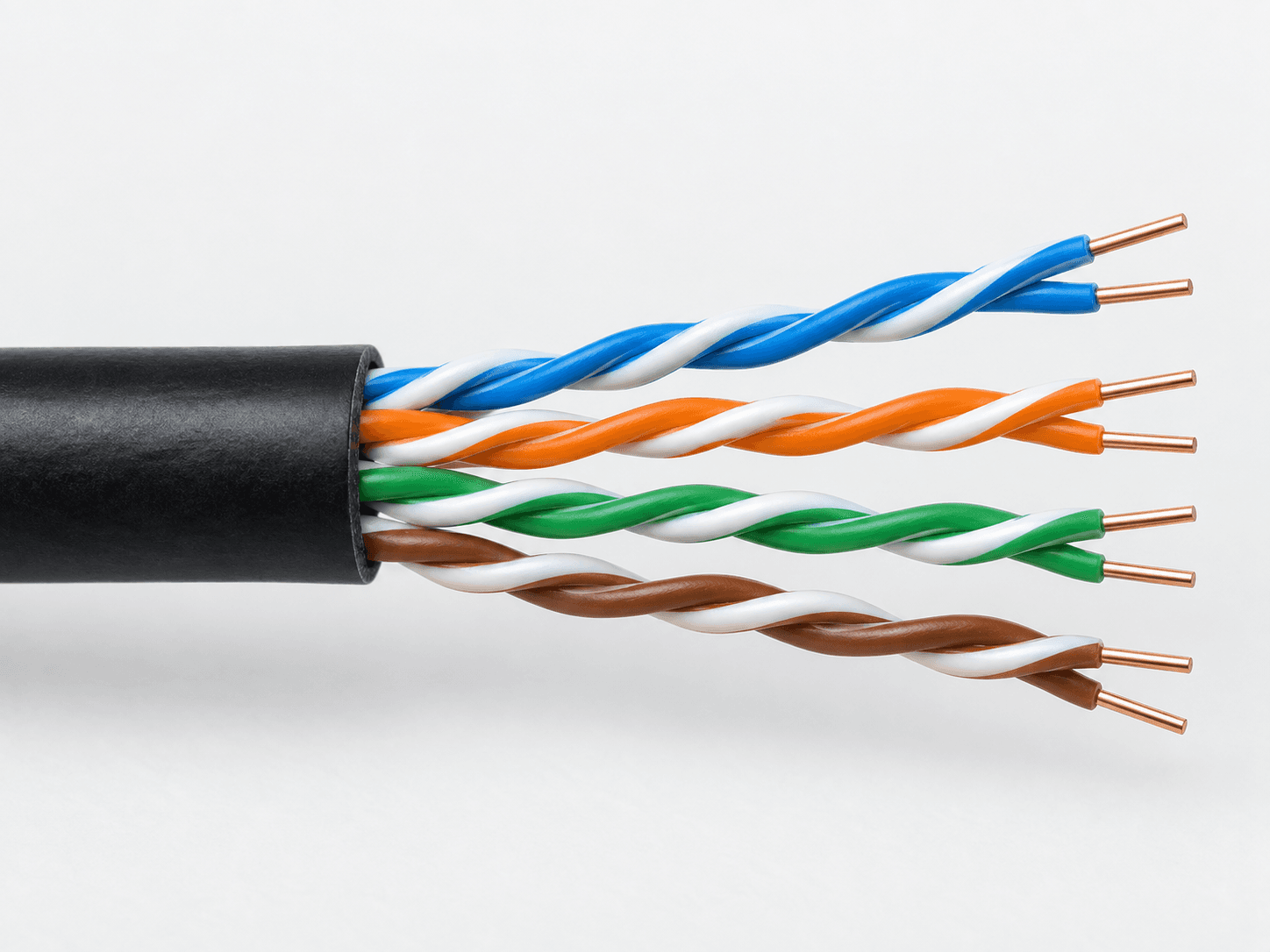

Cat5e / Cat6 family example
Representative unshielded twisted-pair example only. Cat6A, Cat7 and shielded network-cable constructions may use different pair separation, shielding, conductor and sheath arrangements.

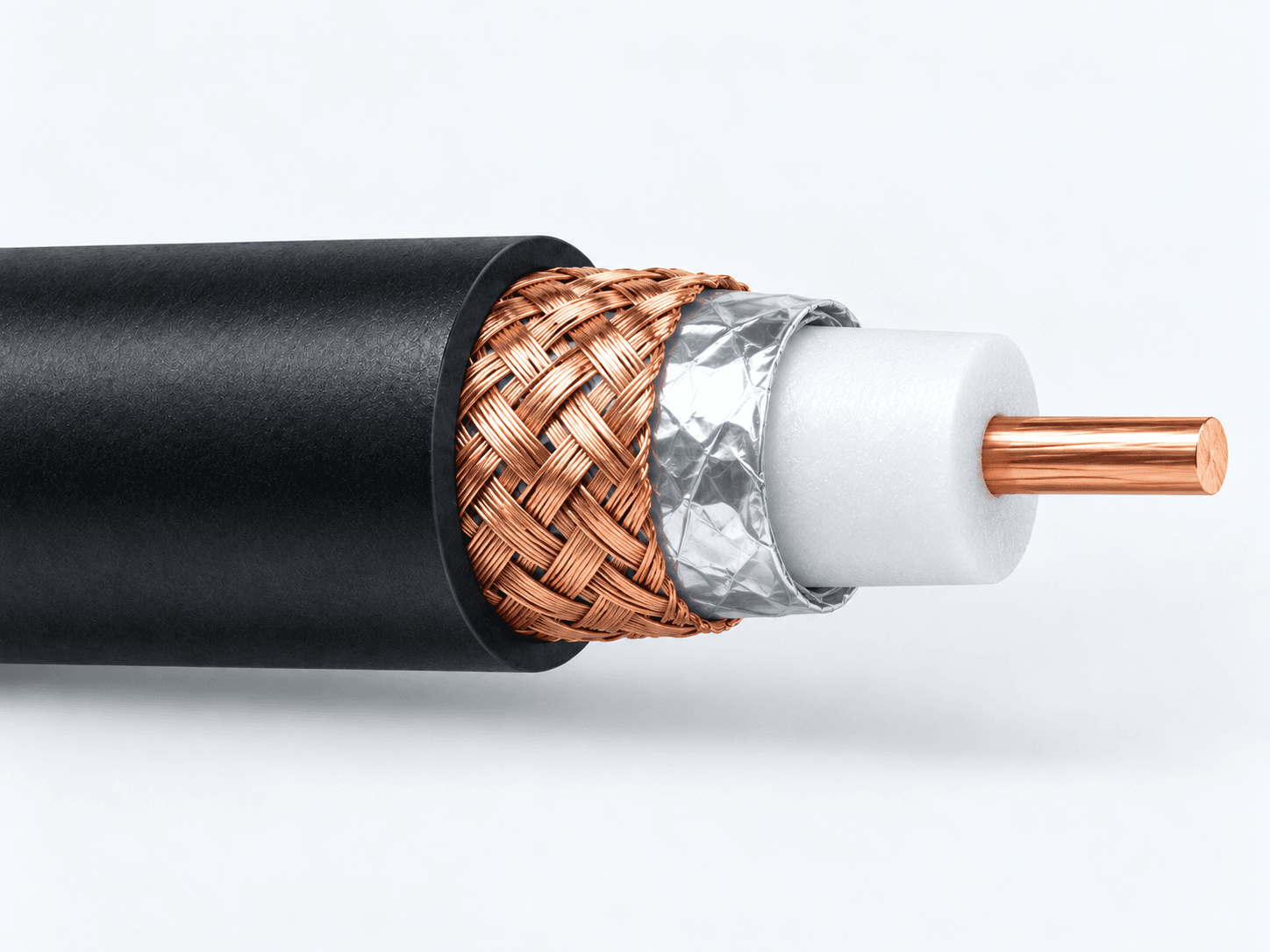

RG6 / RG11 / RG58 / RG59 / RG213 / RG316 family
Construction varies by selected RG / RF cable type. Center conductor, dielectric, shielding arrangement, dimensions and electrical characteristics shall be confirmed by model and project requirement.

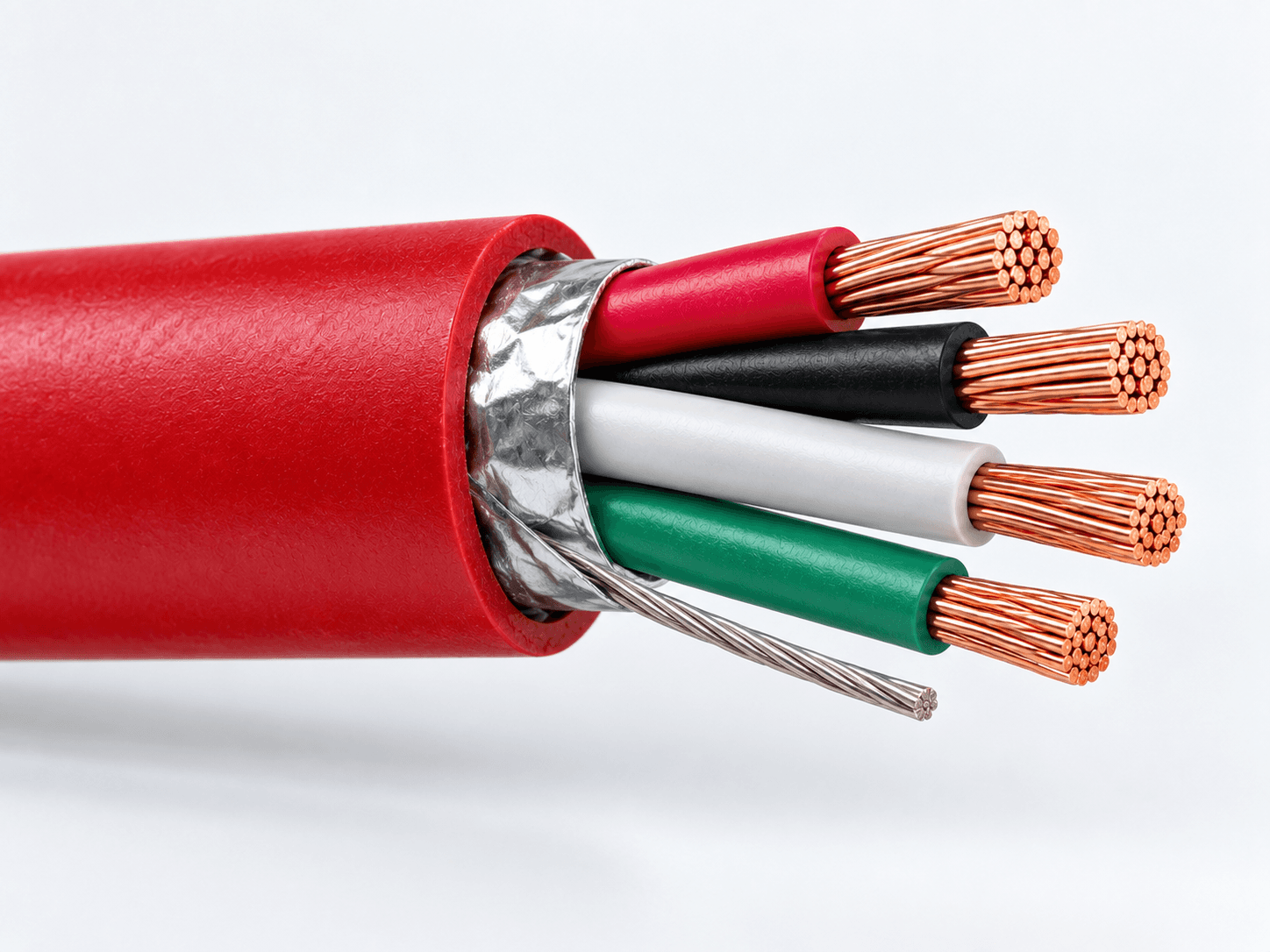

Shielded multi-conductor example
One possible shielded multi-conductor example. Final conductor count, conductor size, shielding, sheath, fire-performance and certification requirements depend on the selected cable type and project standard.
Illustrative constructions only. Core colours, jacket colours, layer appearance and proportions do not define a specific cable model, material specification, fire classification or wiring standard.
If the specification is incomplete, send the available BOQ, drawing or datasheet. Huanyu can review the information and identify the cable details still required for quotation.
Optical cable requirements can also be reviewed separately by project.
